Cub Cadet i1050
The Cub Cadet i1050 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 725 cc 44.24 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: Hydro-Gear EZT. Operating weight: 590 lbs*With mower deck 267 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
2.8 gal
10.6 L
Transmission
Hydro-Gear EZT
Operating Weight
590 lbs*With mower deck
267 kg
Cub Cadet Lawn Tractors Cub Cadet i1050 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2007 - 2009
iSeries SeriesZero-turn mower |
|---|---|
2007 - 2009 | |
iSeries Series | |
Zero-turn mower | |
2007 - 2009 | |
|---|---|
iSeries Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Original price was $3,900 in 2007 | |
Cub Cadet i1050 Engine | |
|---|---|
25HP Kohler 725cc 2-cyl gasoline | |
Fuel tank | 2.8 gal
10.6 L |
Engine details ...  | |
Cub Cadet i1050 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential |
Dry disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Weight | 590 lbs
267 kg |
Front tire | 15x6 |
Rear tire | 20x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 235 |
Battery volts | 12 |
References | |
|---|---|
 | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
iSeries Zero-Turn Tractors published in 2008, by Cub Cadet |
Engine
| 2007 - 2009
iSeries SeriesZero-turn mower |
|---|---|
2007 - 2009 | |
iSeries Series | |
Zero-turn mower | |
2007 - 2009 | |
|---|---|
iSeries Series | |
Zero-turn mower |
Engine Detail — 725 cc / 44.24 ci Gasoline
Manufacturer | Kohler SV730 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-twin |
Displacement | 725 cc
44.24 ci |
Bore/Stroke | 3.27x2.64 inches
83 x 67 mm |
Power (gross) | 25 hp
18.6 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.6 qts
1.5 L |
Transmission
| 2007 - 2009
iSeries SeriesZero-turn mower |
|---|---|
2007 - 2009 | |
iSeries Series | |
Zero-turn mower | |
2007 - 2009 | |
|---|---|
iSeries Series | |
Zero-turn mower |
Transmission — Hydro-Gear EZT
Transmission | Hydro-Gear EZT |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |

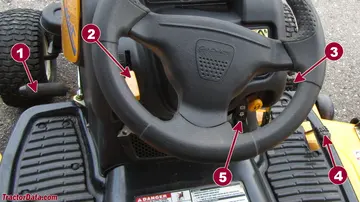

i1050 Transmission Controls | |
|---|---|
 | |
1 | Brake |
2 | Throttle |
3 | Forward |
4 | Reverse |
5 | Parking brake |
Dimensions
| 2007 - 2009
iSeries SeriesZero-turn mower |
|---|---|
2007 - 2009 | |
iSeries Series | |
Zero-turn mower | |
2007 - 2009 | |
|---|---|
iSeries Series | |
Zero-turn mower |
Cub Cadet i1050 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 20x8 |
Dimensions | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Length | 69 inches
175 cm |
Weight | 590 lbs*With mower deck
267 kg |
Attachments
| 2007 - 2009
iSeries SeriesZero-turn mower |
|---|---|
2007 - 2009 | |
iSeries Series | |
Zero-turn mower | |
2007 - 2009 | |
|---|---|
iSeries Series | |
Zero-turn mower |
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Rear bagger kit for the 50-inch deck was model number 19A-101-100. |
50" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade | |
Cutting width | 50 inches
127 cm |
Cut height | 1.25 to 3.75 inch
3 to 9 cm |
Cut positions | 6 |
Photos
Cub Cadet i1050

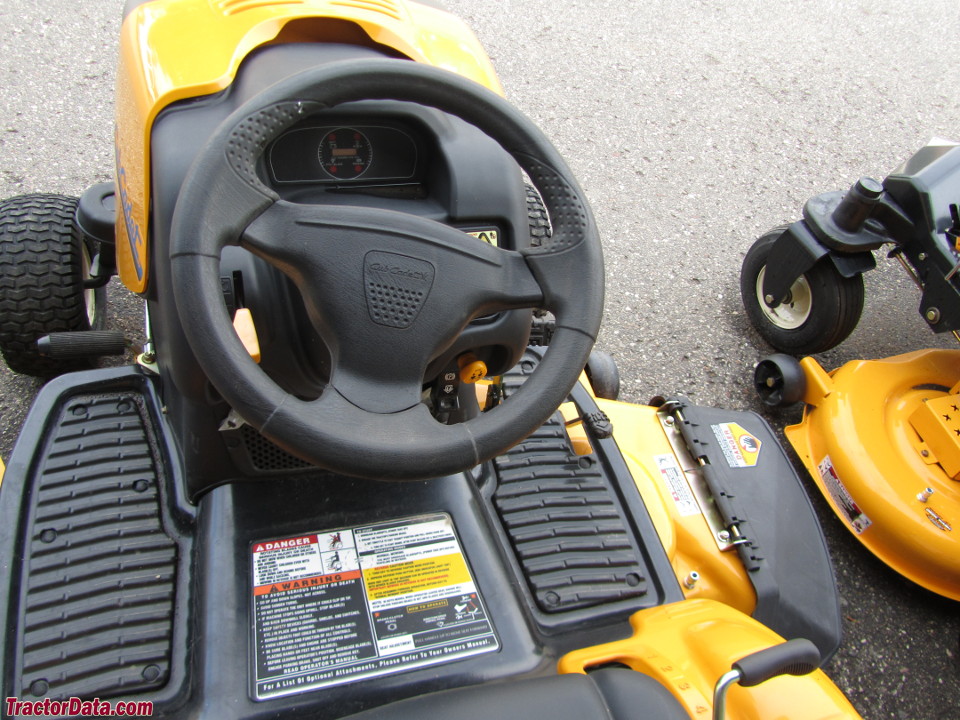

Cub Cadet i1050 operator station and controls.
