Cub Cadet Tank S7232 D

The Cub Cadet Tank S7232 D is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 1330 cc 81.2 ci engine. The listed engine power is Diesel (gross): 31.2 hp / 23.3 kW. Transmission: Hydro-Gear PK-12. Operating weight: 1890 lbs 857 kg.

Engine Power

Diesel (gross): 31.2 hp / 23.3 kW

Fuel & Capacities

14 gal*Dual 7-gallon tanks 53.0 L

Transmission

Hydro-Gear PK-12

Operating Weight

1890 lbs 857 kg

Overview

	2010 - 2012 Tank S SeriesZero-turn mower Tank S Series Zero-turn mower

Production
Manufacturer	Cub Cadet (a part of MTD)
Zero-turn mower

Cub Cadet Tank S7232 Engine
31.2HP Yanmar 1330cc 3-cyl diesel
Fuel tank	14 gal*Dual 7-gallon tanks 53.0 L
Engine details ...

Cub Cadet Tank S7232 Transmission
hydrostatic
Transmission details ...

Mechanical
Steering	differential power
Drum brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	54 inches 137 cm
Weight	1890 lbs 857 kg
Front tire	16x6.5-8
Rear tire	24x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	40
Battery volts	12

Engine

Engine Detail — 1330 cc / 81.2 ci Diesel

Manufacturer	Yanmar 3TNV82
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	1330 cc 81.2 ci
Bore/Stroke	3.23x3.31 inches 82 x 84 mm
Power (gross)	31.2 hp 23.3 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear PK-12

Transmission	Hydro-Gear PK-12
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet Tank S7232 Tires
Lawn/turf front	16x6.5-8
Lawn/turf rear	24x12-12

Dimensions
Wheelbase	54 inches 137 cm
Length	90 inches 228 cm
Width	74 inches 187 cm
Height	72 inches 182 cm
Weight	1890 lbs 857 kg
Front tread	49.5 inches 125 cm
Rear tread	58 inches 147 cm

Attachments

72" Mower deck
Type	mid-mount Cub Cadet
	3-blade with hydraulic power lift
Cutting width	72 inches 182 cm
Cut height	1 to 5 inch 2 to 12 cm

Photos

Cub Cadet Tank S7232 D

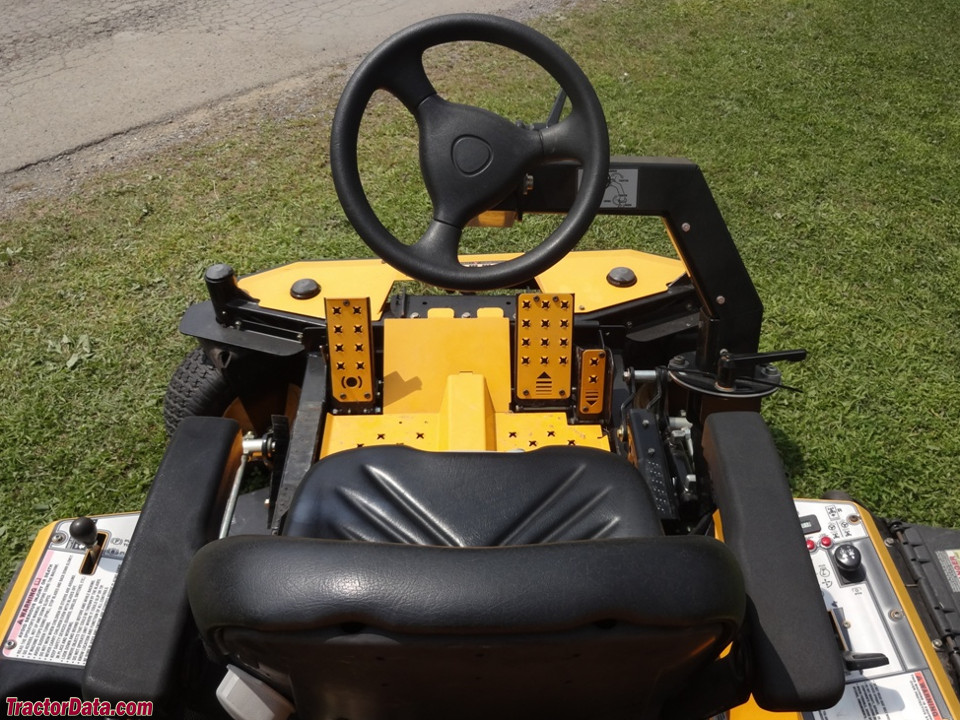

Cub Cadet Tank S7232 operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet Tank S7232 D based on its 31.2 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet Tank S7232 D.

Estimated Continuous Field Runtime: 8.6 hrs

Approximately 8.6 hours of continuous field operation at ~75% rated power on a full tank (14 gal / 53 L).

Estimated 75% Load Fuel Burn~1.6 gal/hr (6.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet Tank S7232 D Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet Tank S7232 D.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)31.2 hp

Kilowatts (kW)23.3 kW

Metric Horsepower (PS / CV)31.6 PS
