Cub Cadet XT2 GX54

The Cub Cadet XT2 GX54 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 24 hp / 17.9 kW. Transmission: Tuff Torq.

Engine Power

Gasoline (gross): 24 hp / 17.9 kW

Fuel & Capacities

3 gal 11.4 L

Transmission

Tuff Torq

Overview

	2015 - XT2 Enduro SeriesGarden tractor
2015 -
XT2 Enduro Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor

Variants
XT2 GX54 KH	Kohler engine
XT2 GX54	Kawasaki engine

Cub Cadet XT2 GX54 Engine
17.9KW Kawasaki 726cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet XT2 GX54 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station. Optional sunshade. Optional soft-side weather cab.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	15x6
Rear tire	20x8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	300
Battery volts	12

Engine

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer	Kawasaki FR730V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	726 cc 44.3 ci
Bore/Stroke	3.071x2.992 inches 78 x 76 mm
Power (gross)	24 hp 17.9 kW
Starter	electric
Starter volts	12
Oil capacity	2.1 qts 2.0 L

Cub Cadet XT2 GX54 Engine

Image courtesy of Frederick Menard

Transmission

Transmission — Tuff Torq

Transmission	Tuff Torq
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Cub Cadet XT2 GX54 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x8

Dimensions
Front axle	Cast-iron

Attachments

54" Mower deck
Type	mid-mount Cub Cadet
	3-blade with manual with spring-assist lift
Cutting width	54 inches 137 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	12

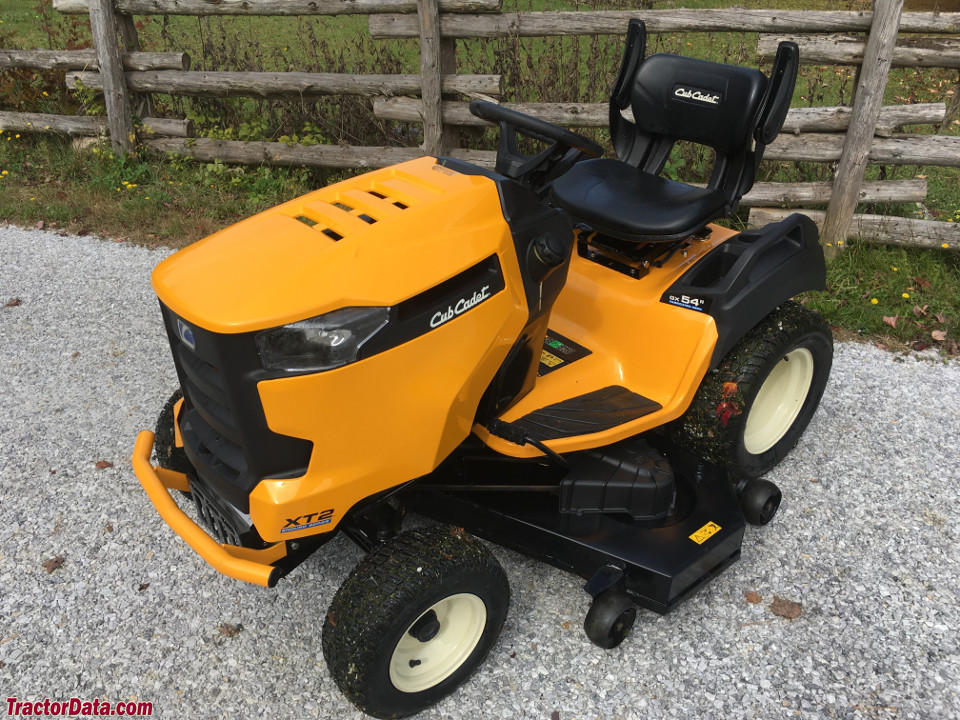

Photos

Cub Cadet XT2 GX54

Recommended Implements & Sizing Guide

Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet XT2 GX54 based on its 24 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet XT2 GX54.

Estimated Continuous Field Runtime: 2.4 hrs

Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet XT2 GX54 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet XT2 GX54.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)24 hp

Kilowatts (kW)17.9 kW

Metric Horsepower (PS / CV)24.3 PS
