Cub Cadet 982

The Cub Cadet 982 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The rated power output is 19.9 hp 14.8 kW. Transmission: infinite forward and reverse. Operating weight: 875 lbs 396 kg.

Overview

	1979 - 1986 Model year 1979-19811982-1986 IH 82 SeriesGarden tractor
1979 - 1986
Model year 1979-19811982-1986
IH 82 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Cub Cadet 982 Engine
19.9HP Onan 781cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Cub Cadet 982 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Differential external disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent
Clutch	electric
Rear PTO Type	2000
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	51.6 inches 131 cm
Weight	875 lbs 396 kg
Front tire	18x8.50-8
Rear tire	26x12.00-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	20
Battery CCA	200
Battery volts	12
Battery AH	32

References
International 982 Cadet Tractor published in 1981, by International Harvester
International Cadet Tractors published in 1979, by International Harvester
Buyer's Guide 1981 published by International Harvester
Buyer's Guide 1982 published by International Harvester

Engine

Engine Detail — 781 cc / 47.7 ci Gasoline

Manufacturer	Onan B48G
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	781 cc 47.7 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power	19.9 hp 14.8 kW
Air cleaner	dry with foam pre-cleaner
Rated RPM	3200
Torque	30.86 lb-ft 41.8 Nm
Torque RPM	1629
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Oil change	50 h

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	3.5 qts 3.3 L

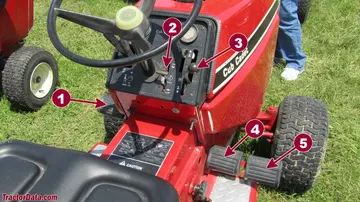

982 Transmission Controls
1	Brakes
2	Throttle
3	Forward/reverse
4	Left brake
5	Right brake

Dimensions

Cub Cadet 982 Tires
Lawn/turf front	18x8.50-8
Lawn/turf rear	26x12.00-12

Dimensions
Wheelbase	51.6 inches 131 cm
Length	78.5 inches 199 cm
Width	43.5 inches 110 cm
Height (steering wheel)	47.5 inches 120 cm
Shipping weight	875 lbs 396 kg
Ground clearance	7.75 inches 19 cm
Front tread	33 inches 83 cm
Rear tread	31.5 inches 80 cm

Attachments

Attachment overview
50" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
The Cub Cadet 982 was compatible with the model 48 tiller. The model 48 requires both the rear PTO and three-point hitch.

Photos

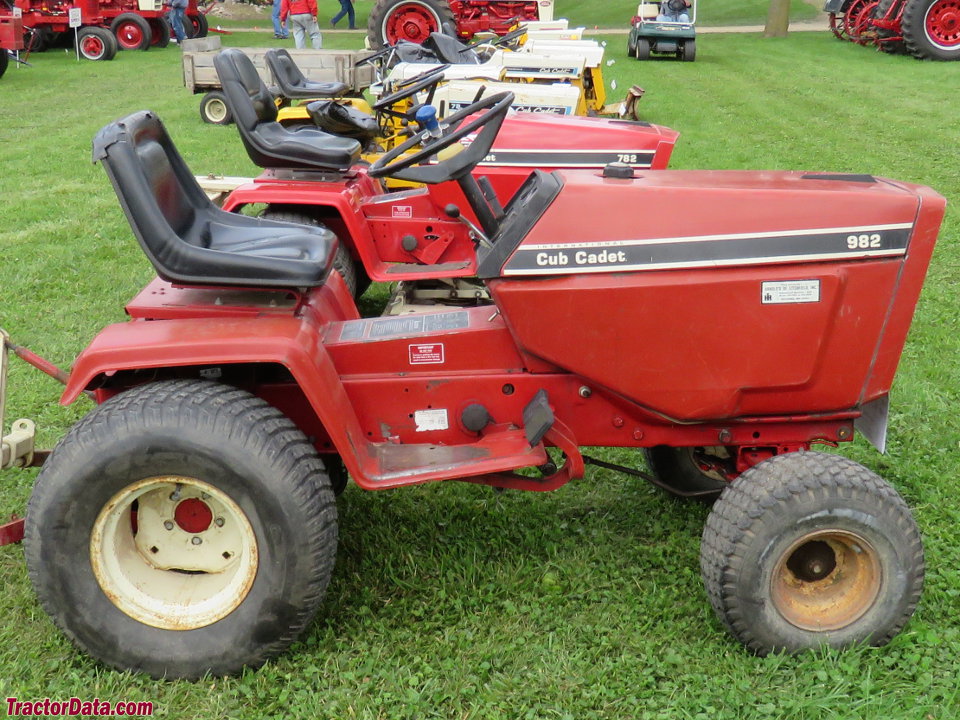

IH Cub Cadet.

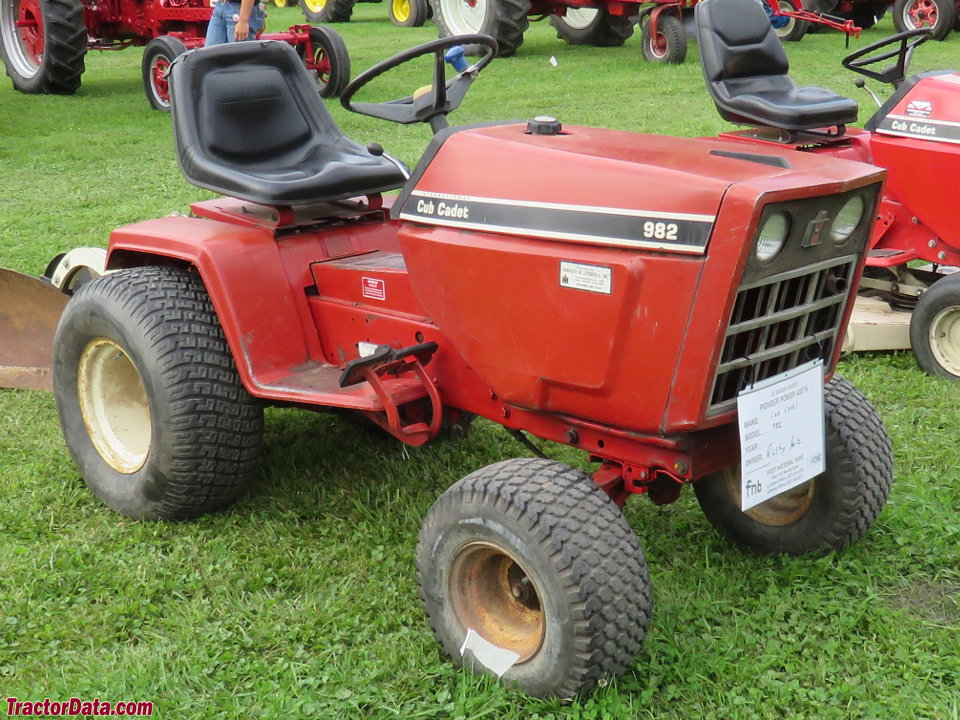

IH Cub Cadet.

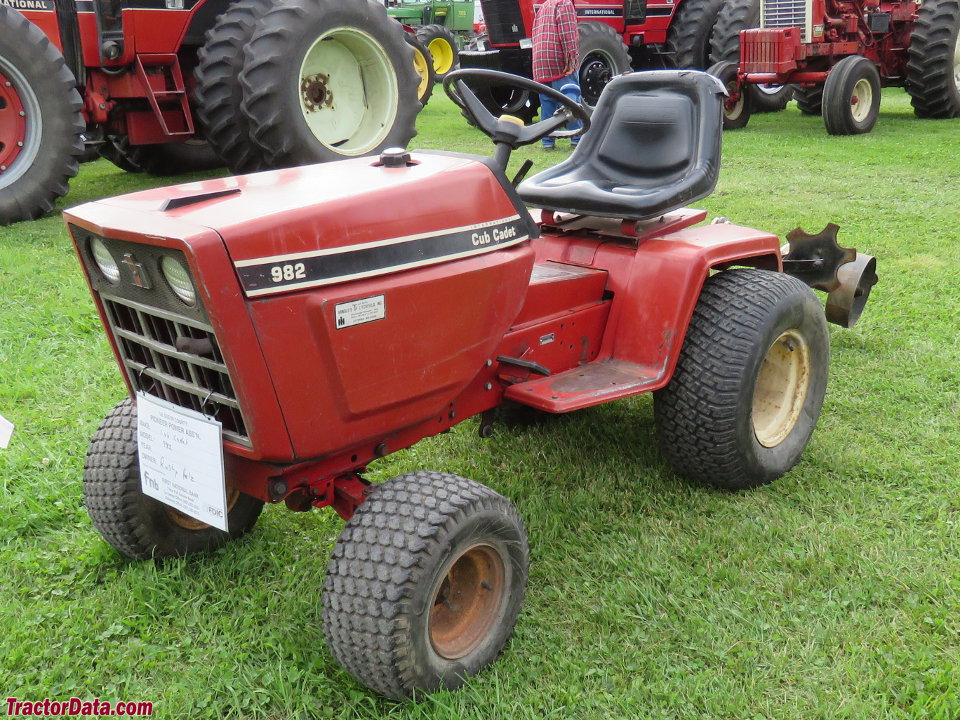

IH Cub Cadet.

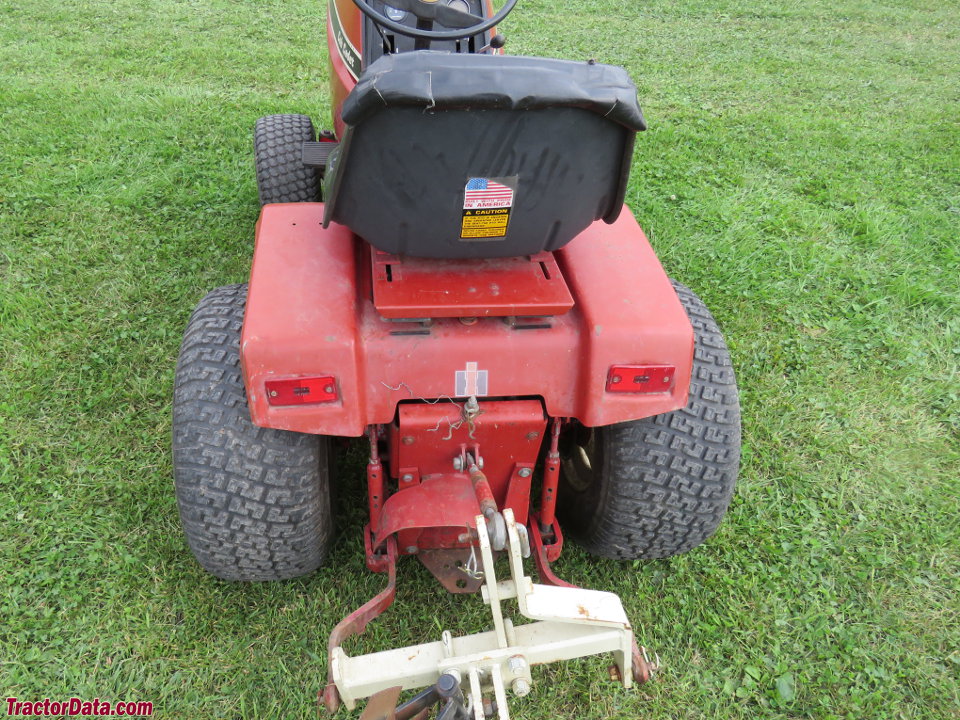

IH Cub Cadet.

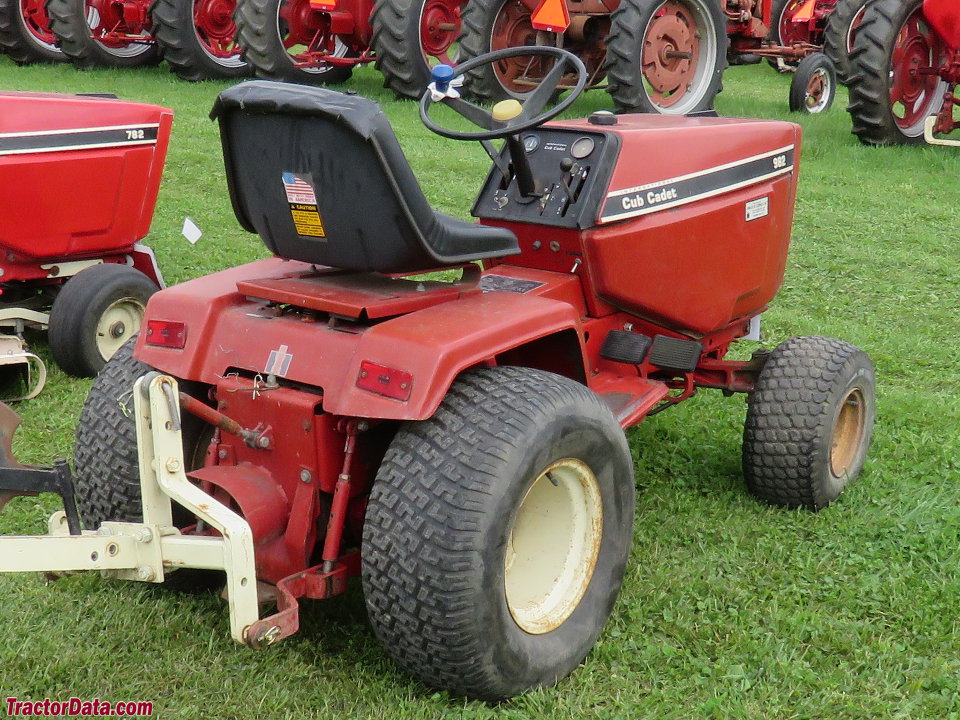

IH Cub Cadet.

IH Cub Cadet.

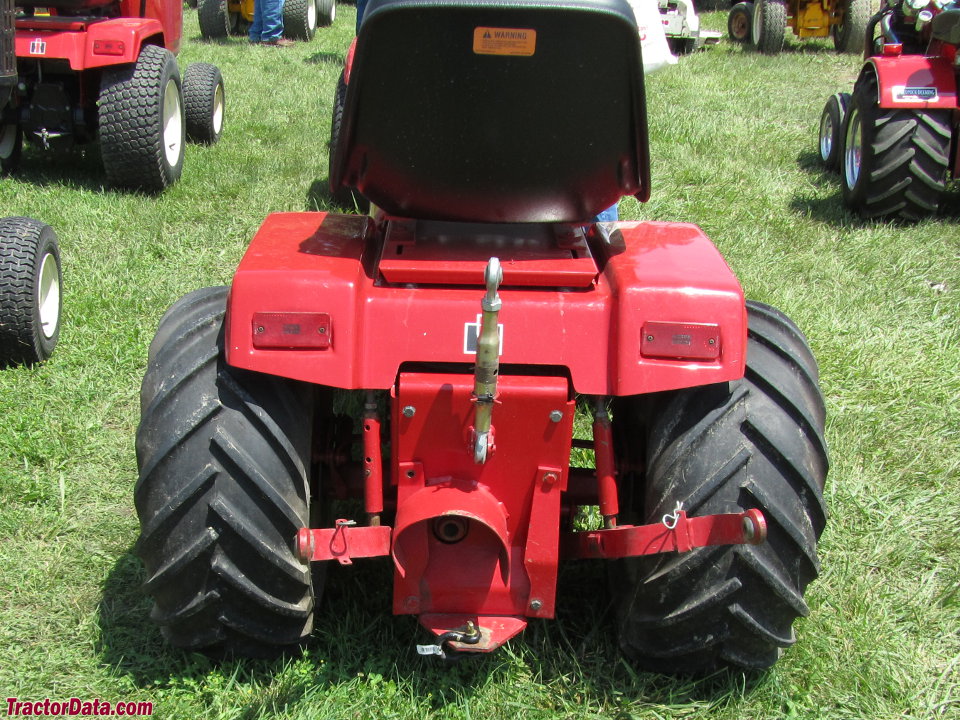

IH Cub Cadet 982 rear end with three-point hitch and PTO.

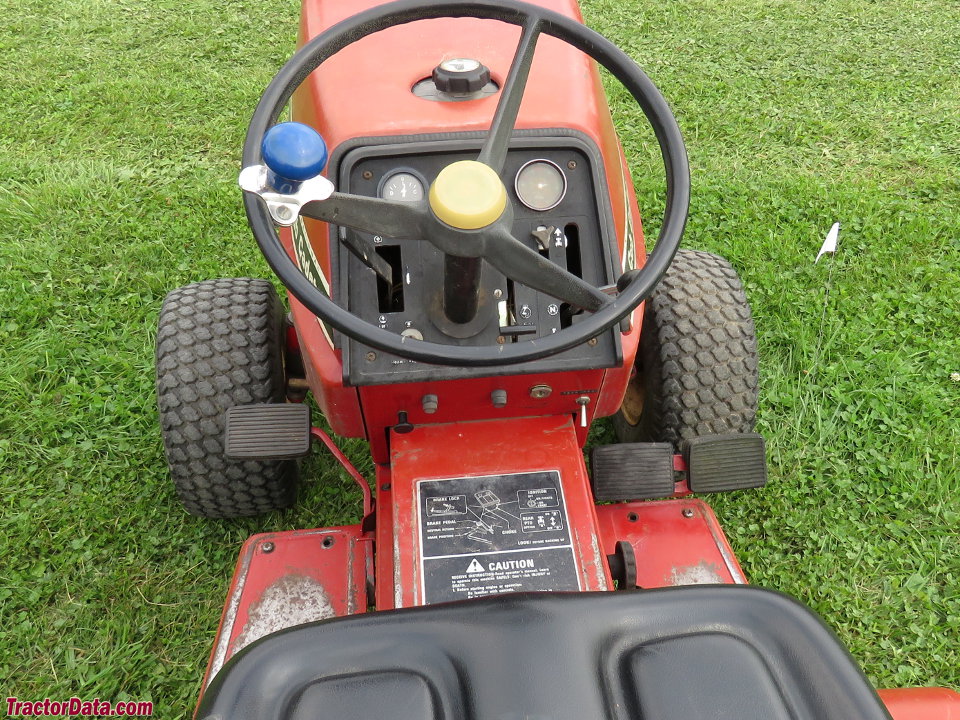

IH Cub Cadet 982 operator station and controls.
