Deutz D 6006

The Deutz D 6006 is a tractor produced by Deutz. It is equipped with a 230.1 ci 3.8 L engine. The rated power output is 62 hp 46.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5756 to 6906 pounds.

Engine Power
62 hp 46.2 kW
Fuel & Capacities
18.5 gal 70.0 L
Transmission
12 forward and 4 reverse
Operating Weight
5756 lbs 2610 kg

Deutz D 6006 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Deutz D 6006 tractor photo
1968 - 1974 06 SeriesUtility tractor
1968 - 1974
06 Series
Utility tractor
Production
Manufacturer
Deutz
Utility tractor
Variants
D6006
2WD
D6006A
4WD
Deutz D 6006 Engine
Deutz 3.8L 4-cyl diesel
Fuel tank
18.5 gal 70.0 L
Engine details ...
Deutz D 6006 Power
Engine
62 hp 46.2 kW
Mechanical
Two- or four-wheel drive
Four-post ROPS optional. Cab optional with heater.
Hydraulics
Type
open center
Pump flow
7.2 gpm 27.3 lpm
Tractor hitch
Rear Type
II
Rear lift
4200 lbs 1905 kg
Power Take-off (PTO)
Rear PTO
live (two-stage clutch)
independent ((Optional)
Rear PTO Type
540
540/1000 OptOptional
Engine RPM
540@2020
1000@2170
Dimensions & Tires
2WD Wheelbase
84.7 inches 215 cm
4WD Wheelbase
85.8 inches 217 cm
Weight
5756 to 6906 pounds
Front tire
7.50-16
Rear tire
16.9-30
Full dimensions and tires ...
References
D 6006 references literature
D6006 published by Deutz
D6006/D6006A published by Deutz
D6006A published by Deutz

Engine

Engine Detail — 230.1 ci / 3.8 L Diesel

Manufacturer
Deutz F4L 912
Fuel Type
Diesel
Configuration
4-cylinder, air-cooled
Displacement
230.1 ci 3.8 L
Bore/Stroke
3.94x4.72 inches 100 x 120 mm
Power
62 hp 46.2 kW
Rated RPM
2300

Transmission

Transmission options
9-speed partially synchronized
8-speed
12-speed

Transmission — 9 forward and 3 reverse partially synchronized

Type
partially synchronized
Gears
9 forward and 3 reverse
The 9-speed was the early transmission, used until 1972.
D 6006 partially synchronized speeds

Transmission — 8 forward and 4 reverse

Gears
8 forward and 4 reverse

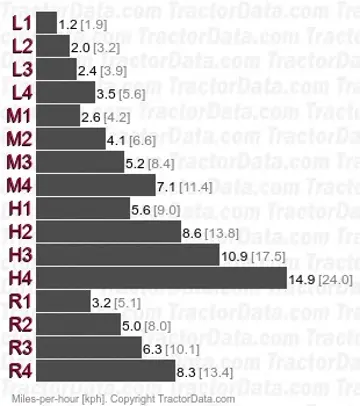

D 6006 speeds

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse
D 6006 speeds

Dimensions

Deutz D 6006 Tires
2WD Ag front
7.50-16
4WD Ag front
12.5-20
Ag rear
16.9-30
Dimensions
2WD Wheelbase
84.7 inches 215 cm
4WD Wheelbase
85.8 inches 217 cm
2WD Length
146.5 inches 372 cm
4WD Length
146.1 inches 371 cm
Width
81.5 inches 207 cm
Height (steering wheel)
71.2 inches 180 cm
Height (ROPS)
106.7 inches 271 cm
2WD Operating weight
5756 lbs 2610 kg
4WD Operating weight
6906 lbs 3132 kg
2WD Ground clearance
19.6 inches 49 cm
4WD Ground clearance
14.1 inches 35 cm
