Deutz-Allis 1616H
The Deutz-Allis 1616H is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 690 lbs*Weight with mower deck. 312 kg.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
infinite forward and reverse
Operating Weight
690 lbs*Weight with mower deck.
312 kg
Deutz Allis Lawn Tractors Deutz-Allis 1616H Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1992
1600 SeriesLawn tractorSimplicity built |
|---|---|
1990 - 1992 | |
1600 Series | |
Lawn tractor | |
Simplicity built | |
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Lawn tractor | |
Variants | |
|---|---|
16LTH | similar Simplicity model |
Deutz-Allis 1616H Engine | |
|---|---|
16HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Deutz-Allis 1616H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 690 lbs
312 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Models 1613 & 1616 published in 1990, by Deutz-Allis | |
Operator's Manual 1600 Series (71704545) published in 1989 |
Engine
| 1990 - 1992
1600 SeriesLawn tractorSimplicity built |
|---|---|
1990 - 1992 | |
1600 Series | |
Lawn tractor | |
Simplicity built | |
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |

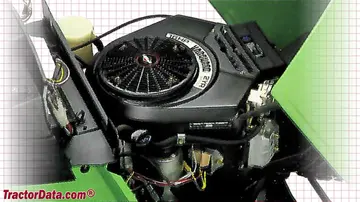

Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.75 qts
1.7 L |
Deutz-Allis 1616H Engine | |
|---|---|
 |
Transmission
| 1990 - 1992
1600 SeriesLawn tractorSimplicity built |
|---|---|
1990 - 1992 | |
1600 Series | |
Lawn tractor | |
Simplicity built | |
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 2.2 qts
2.1 L |
 | |
Dimensions
| 1990 - 1992
1600 SeriesLawn tractorSimplicity built |
|---|---|
1990 - 1992 | |
1600 Series | |
Lawn tractor | |
Simplicity built | |
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |
Deutz-Allis 1616H Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.00-10 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 67 inches
170 cm |
Width | 34.5 inches
87 cm |
Height (steering wheel) | 39 inches
99 cm |
Height (hood) | 33 inches
83 cm |
Weight | 690 lbs*Weight with mower deck.
312 kg |
Attachments
| 1990 - 1992
1600 SeriesLawn tractorSimplicity built |
|---|---|
1990 - 1992 | |
1600 Series | |
Lawn tractor | |
Simplicity built | |
1990 - 1992 | |
|---|---|
1600 Series | |
Lawn tractor | |
Simplicity built |
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade |
44" Mower deck | |
|---|---|
Type | mid-mount Deutz-Allis |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Overall width | 56 inches
142 cm |
Cut height | 1 to 3.6 inch
2 to 9 cm |
