Deutz-Allis 1816 Sigma

The Deutz-Allis 1816 Sigma is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW; Gasoline (listed): 16 hp / 11.9 kW. Transmission: Eaton 850. Operating weight: 485 lbs 219 kg.

Overview

	1988 - 1991 Sigma SeriesGarden tractorSimplicity built Sigma Series Garden tractor Simplicity built

Production
Distributor	Deutz-Allis
Manufacturer	Simplicity
Garden tractor

Deutz-Allis 1816 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	48.3 inches 122 cm
Weight	485 lbs 219 kg
Front tire	15x6.00-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn & Garden Riding Equipment published in 1988, by Deutz-Allis

Engine

Engine options
16HP Briggs & Stratton 655cc 2-cyl gasoline
16HP Kohler gasoline

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 402707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	655 cc 40 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power	16 hp 11.9 kW
Starter volts	12

Engine Detail — Gasoline

Manufacturer	Kohler Magnum
Fuel Type	Gasoline
The Kohler Magnum was used on the Deutz-Allis Ultima 1816
Power	16 hp 11.9 kW

Transmission

Transmission — Eaton 850

Transmission	Eaton 850
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Deutz-Allis 1816 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	48.3 inches 122 cm
Length	67 inches 170 cm
Width	37 inches 93 cm
Weight	485 lbs 219 kg

Deutz-Allis 1816 Height
	32.6 inches (hood) 82 cm
	35.6 inches (rear) 90 cm
	41.4 inches (steering wheel) 105 cm

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

48" Mower deck
Type	mid-mount Deutz-Allis
Cutting width	48 inches 121 cm

Photos

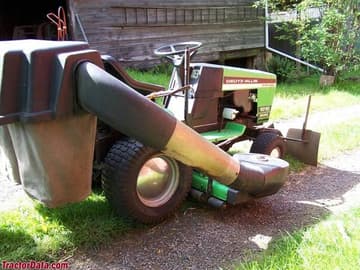

Deutz-Allis 1816 Sigma
