Deutz-Allis 1916 Ultima
The Deutz-Allis 1916 Ultima is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 588 cc 35.9 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 955 lbs 433 kg.
Overview
 | 1988 - 1990
Ultima SeriesGarden tractorSimplicity built
Ultima Series
Garden tractor
Simplicity built |
|---|
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Garden tractor | |
Deutz-Allis 1916 Engine | |
|---|---|
16HP Kohler 588cc 1-cyl gasoline | |
Fuel tank | 4.25 gal
16.1 L |
Engine details ...  | |
Deutz-Allis 1916 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Weight | 955 lbs
433 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Riding Equipment published in 1988, by Deutz-Allis |
Engine
Engine Detail — 588 cc / 35.9 ci Gasoline
Manufacturer | Kohler M16 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 588 cc
35.9 ci |
Bore/Stroke | 3.6875x3.25 inches
94 x 83 mm |
Power | 16 hp
11.9 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 3 qts
2.8 L |
Dimensions
Deutz-Allis 1916 Tires |
|---|
Dimensions | |
|---|---|
Length | 78 inches
198 cm |
Height (steering wheel) | 47 inches
119 cm |
Weight | 955 lbs
433 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

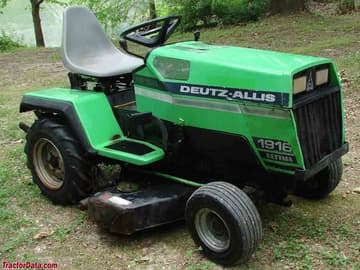

Deutz-Allis 1916 Ultima
Deutz-Allis 1916 Ultima
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Allis Lawn Tractors Deutz-Allis 1916 Ultima based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Allis Lawn Tractors Deutz-Allis 1916 Ultima.
Estimated Continuous Field Runtime: 5.2 hrs
Approximately 5.2 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Deutz Allis Lawn Tractors Deutz-Allis 1916 Ultima Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Lawn Tractors Deutz-Allis 1916 Ultima.
Converted Equivalents:
Direct Competitor Comparison
Compare Deutz-Allis 1916 Ultima against same-era industry alternatives in the same horsepower class.
Deutz-Allis 1916 Ultima
