Deutz-Allis 916

The Deutz-Allis 916 is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 588 cc 35.89 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 835 lbs*Weight with mower deck. 378 kg.

Overview

	1986 - 1991 900 SeriesGarden tractor
1986 - 1991
900 Series
Garden tractor

Production
Manufacturer	Deutz-Allis
Garden tractor

Deutz-Allis 916 Engine
16HP Kohler 588cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Deutz-Allis 916 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	835 lbs 378 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Lawn & Garden Riding Equipment published in 1986, by Deutz-Allis
Operator's Manual 900 Series published in 1987, by Deutz-Allis

Engine

Engine Detail — 588 cc / 35.89 ci Gasoline

Manufacturer	Kohler K341S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	588 cc 35.89 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.25 qts 2.1 L

Dimensions

Deutz-Allis 916 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Length	70 inches 177 cm
Width	36.9 inches 93 cm
Height	39.7 inches 100 cm
Weight	835 lbs*Weight with mower deck. 378 kg

Attachments

48" Mower deck
Type	mid-mount Deutz-Allis
Cutting width	48 inches 121 cm

Photos

Deutz-Allis 916, right side.

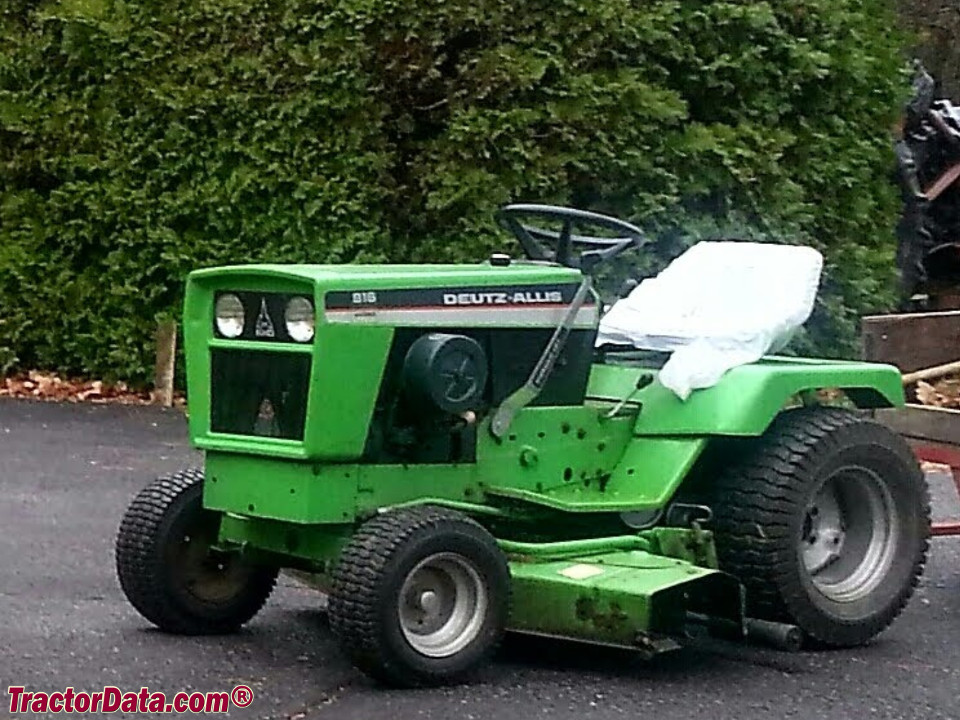

Deutz-Allis 916 with mower deck, left side.
