Deutz-Allis T-816
The Deutz-Allis T-816 is a tractor produced by Deutz Allis Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Vari-Shift. Operating weight: 121 lbs 54 kg.
Overview
 | 1986 - 1987
T-800 SeriesGarden tractorSimplicity built
T-800 Series
Garden tractor
Simplicity built |
|---|
Production | |
|---|---|
Distributor | Deutz-Allis |
Manufacturer | Simplicity |
Garden tractor | |
Deutz-Allis T-816 Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 2.2 gal
8.3 L |
Engine details ...  | |
Deutz-Allis T-816 Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Weight | 485 lbs
219 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 402707 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft opposed-twin |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power | 16 hp
11.9 kW |
Starter volts | 12 |

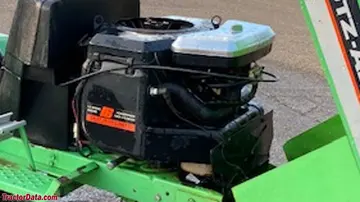

Deutz-Allis T-816 Engine | |
|---|---|
 | |
Image courtesy of Matt Seaberg |
Transmission
Transmission — Vari-Shift
Transmission | Vari-Shift |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Deutz-Allis T-816 Tires | |
|---|---|
Ag front | 15x6.00-6 |
Ag rear | 23x6.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48.3 inches
122 cm |
Length | 67 inches
170 cm |
Width | 38 inches
96 cm |
Height (steering wheel) | 41.4 inches
105 cm |
Height (hood) | 32.6 inches
82 cm |
Weight | 485 lbs*Weight of tractor only.
219 kg |
Attachments
48" Mower deck | |
|---|---|
Type | mid-mount Deutz-Allis |
3-blade | |
Cutting width | 48 inches
121 cm |
Weight | 121 lbs
54 kg |
Overall width | 63 inches
160 cm |
Photos

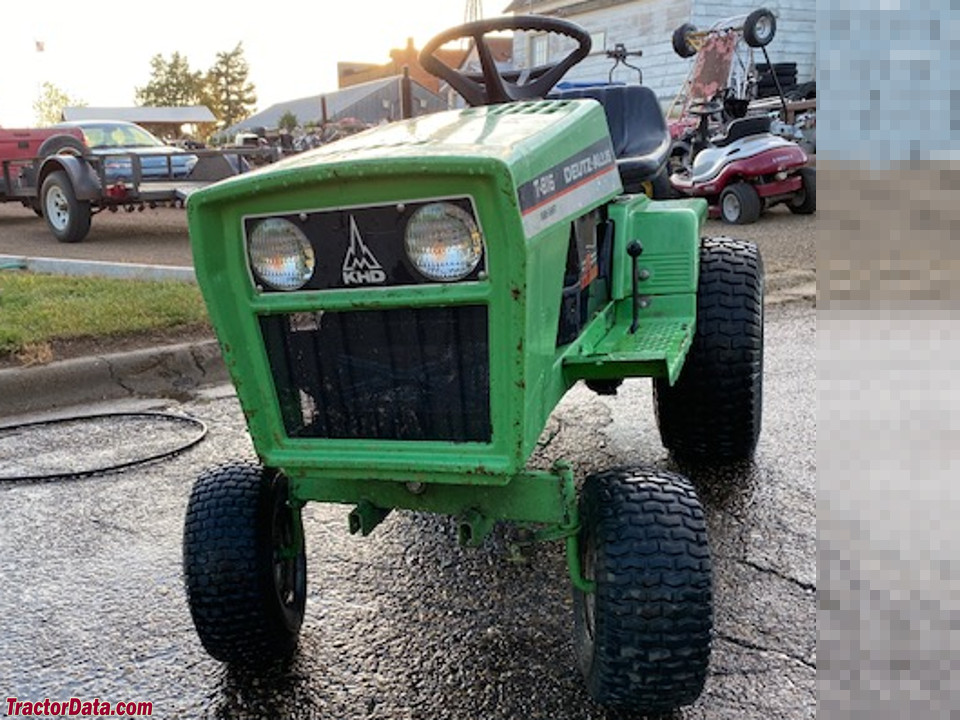

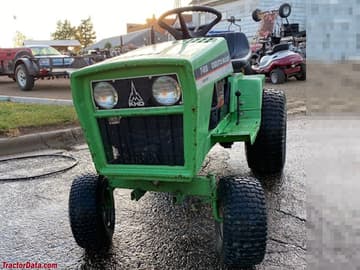

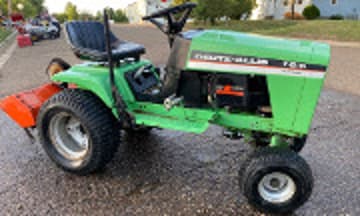

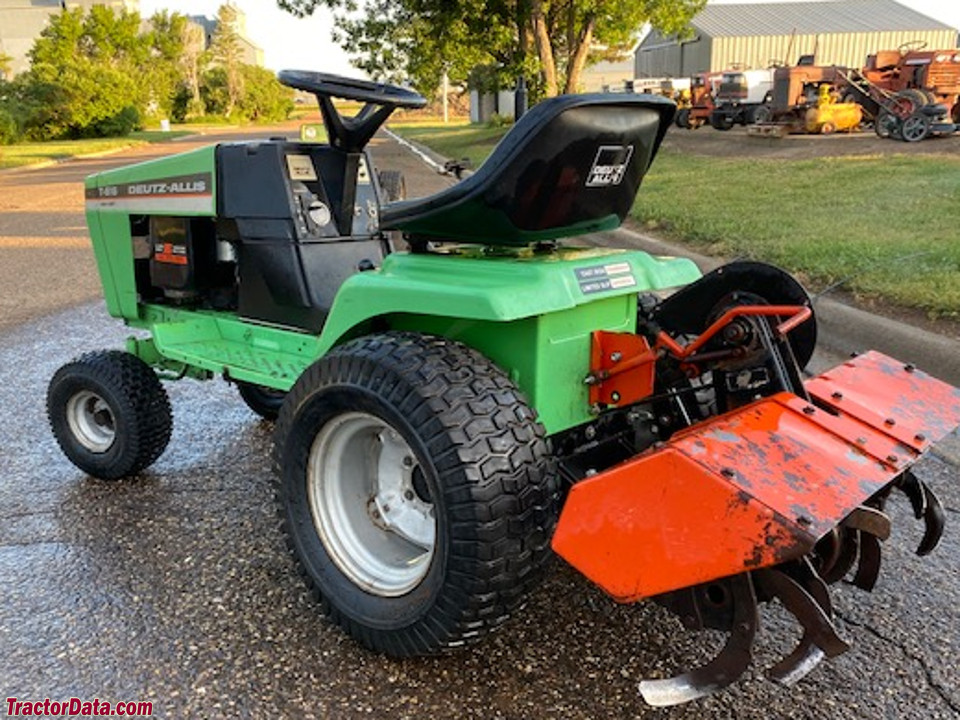

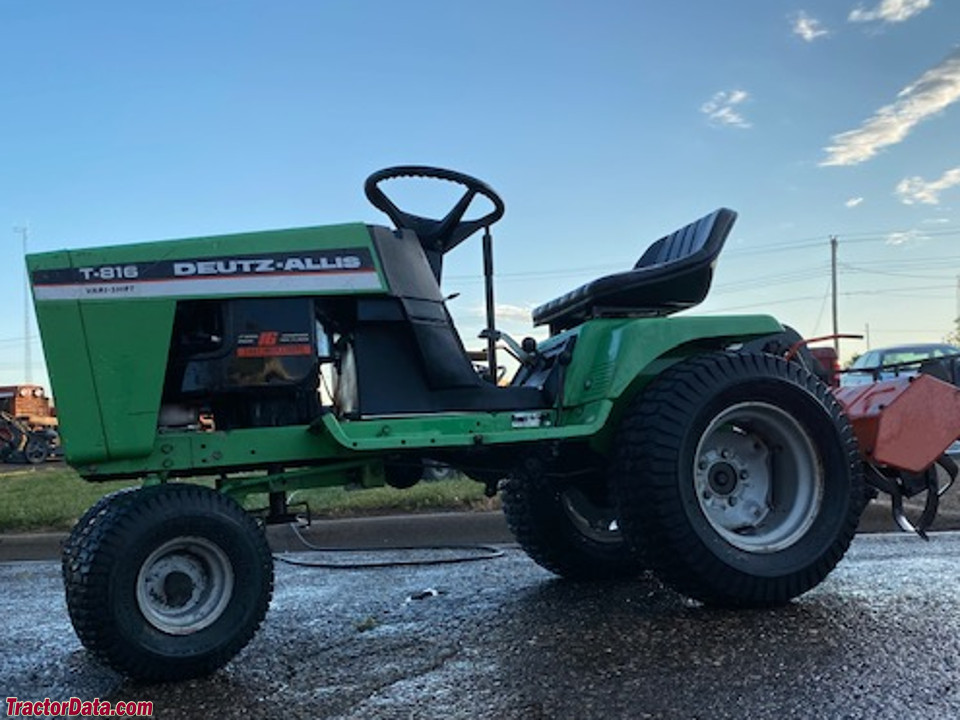

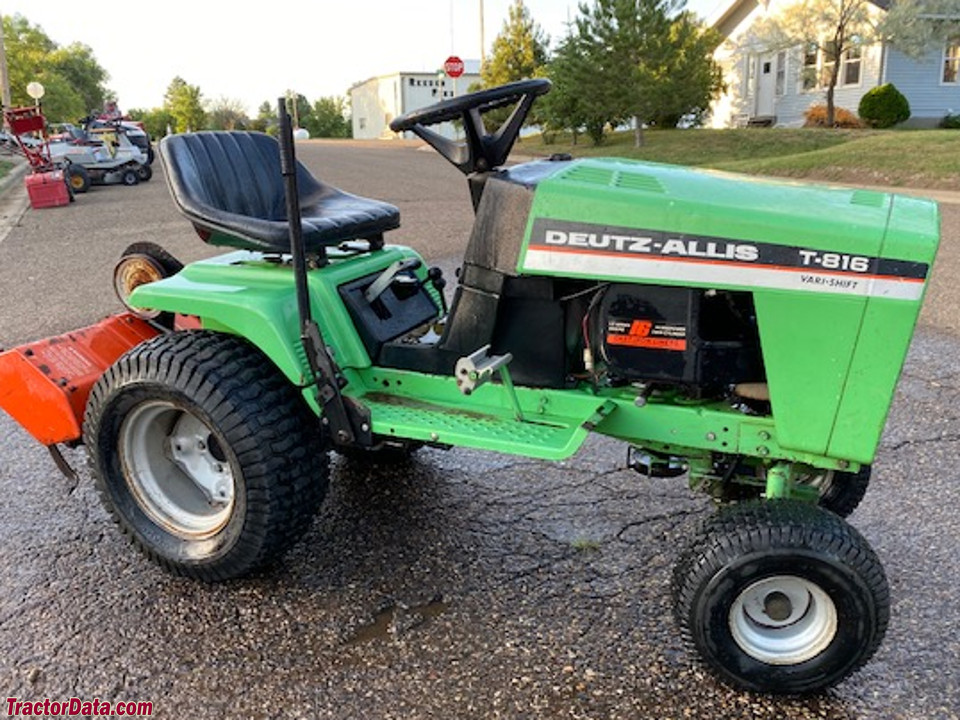

Deutz-Allis T-816
Deutz-Allis T-816
Deutz-Allis T-816
Deutz-Allis T-816
Recommended Implements & Sizing Guide
Engineering recommendations for Deutz Allis Lawn Tractors Deutz-Allis T-816 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Allis Lawn Tractors Deutz-Allis T-816.
Estimated Continuous Field Runtime: 2.6 hrs
Approximately 2.6 hours of continuous field operation at ~75% rated power on a full tank (2.2 gal / 8.3 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Deutz Allis Lawn Tractors Deutz-Allis T-816 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Allis Lawn Tractors Deutz-Allis T-816.
Converted Equivalents:
Direct Competitor Comparison
Compare Deutz-Allis T-816 against same-era industry alternatives in the same horsepower class.
