Deutz-Fahr 4070E

The Deutz-Fahr 4070E is a tractor produced by Deutz Fahr. It is equipped with a 176.2 ci 2.9 L engine. The listed engine power is Diesel (gross): 64.4 hp / 48.0 kW. Transmission: 15 forward and reverse. Operating weight: 6173 to 6614 pounds.

Engine Power
Diesel (gross): 64.4 hp / 48.0 kW
Fuel & Capacities
19.8 gal 74.9 L
Transmission
15 forward and reverse
Operating Weight
6173 to 6614 pounds

Overview

Deutz-Fahr 4070E tractor photo
2018 - 4E SeriesUtility tractor
2018 -
4E Series
Utility tractor
Production
Manufacturer
Deutz-Fahr
Utility tractor
Deutz-Fahr 4070E Engine
SDF 2.9L 3-cyl diesel
Fuel tank
19.8 gal 74.9 L
Engine details ...
Deutz-Fahr 4070E Power
Engine (gross)
64.4 hp 48.0 kW
Mechanical
Two- or four-wheel drive
Differential lock
mechanical
Power steering
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Type
open center
Valves
1 to 3
Pump flow
11.1 gpm 42.0 lpm
13.2 gpmOptOptional 50.0 lpm
Tractor hitch
Rear Type
II
Control
position and draft control
Rear lift
5512 lbs 2500 kg
7717 lbsOptOptional 3500 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
540/540E OptOptional
540/540E/1000 OptOptional
Dimensions & Tires
2WD Wheelbase
85.3 inches 216 cm
4WD Wheelbase
82.7 inches 210 cm
Weight
6173 to 6614 pounds
Front tire
280/85R20
Rear tire
380/85R28
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
4070E references literature
4E Series published in 2018, by Deutz-Fahr

Engine

Engine Detail — 176.2 ci / 2.9 L Diesel

Manufacturer
SDF FARMotion KD3TA
Configuration
turbocharged intercooled diesel, 3-cylinder, liquid-cooled inline
Displacement
176.2 ci 2.9 L
Bore/Stroke
4.06x4.53 inches 103 x 115 mm
Emissions
Stage IIIB
Rated Power (gross)
64.4 hp 48.0 kW
Rated RPM
2200
Torque
215.4 lb-ft 292.1 Nm
Torque RPM
1600
Starter
electric
Starter volts
12

Transmission

Transmission options
12-speed gear
8-speed partially synchronized
15-speed partially synchronized

Transmission — 12 forward and 3 reverse gear

Type
gear
Gears
12 forward and 3 reverse

Transmission — 8 forward and reverse partially synchronized

Type
partially synchronized
Gears
8 forward and reverse
Four synchronized gears in two ranges with shuttle.
4070E partially synchronized speeds

Transmission — 15 forward and reverse partially synchronized

Type
partially synchronized
Gears
15 forward and reverse
Five synchronized gears in three ranges with shuttle.

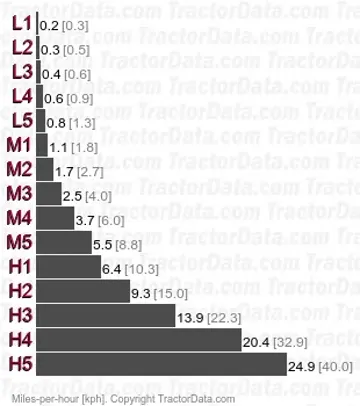

4070E partially synchronized speeds

Dimensions

Deutz-Fahr 4070E Tires
Standard tires (ag)
Front: 280/85R20. Rear: 380/85R28
Dimensions
2WD Wheelbase
85.3 inches 216 cm
4WD Wheelbase
82.7 inches 210 cm
Length
152 inches 386 cm
Width
70.2 inches 178 cm
Deutz-Fahr 4070E Weight
2WD
6173 lbs 2800 kg
4WD
6614 lbs 3000 kg
2WD Max capacity
8278 lbs 3754 kg
4WD Max capacity
10582 lbs 4799 kg

Photos

Deutz-Fahr 4070E tractor photo

Deutz-Fahr 4070E tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Deutz Fahr Deutz-Fahr 4070E based on its 64.4 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr 4070E.

Estimated Continuous Field Runtime: 5.9 hrs

Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (19.8 gal / 75 L).

Estimated 75% Load Fuel Burn~3.3 gal/hr (12.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Deutz Fahr Deutz-Fahr 4070E Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Deutz Fahr Deutz-Fahr 4070E.

Converted Equivalents:

Horsepower (HP)64.4 hp
Kilowatts (kW)48 kW
Metric Horsepower (PS / CV)65.3 PS
