Fiat 160-90

The Fiat 160-90 is a tractor produced by Fiat. It is equipped with a 494.4 ci 8.1 L engine. The rated power output is 160 hp 119.3 kW. Transmission: 16 forward and reverse. Operating weight: 17086 to 18662 pounds.

Overview

	1984 - 1994 90 SeriesRow-Crop tractor
1984 - 1994
90 Series
Row-Crop tractor

Production
Manufacturer	Fiat
Row-Crop tractor

Variants
160-90DT	four-wheel drive
160-90	similar Hesston model

Fiat 160-90 Engine
Fiat-Iveco 8.1L 6-cyl diesel
Engine details ...

Fiat 160-90 Power
Engine	160 hp 119.3 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	hydraulic
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	74 gal 280.1 L
Hydraulic system	14.8 gal 56.0 L

Hydraulics
Capacity	14.8 gal 56.0 L
Valves	3
Pump flow	14.8 gpm 56.0 lpm

Tractor hitch
Rear Type	II
Rear lift	14661 lbs 6650 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1950
	1000@2072

Dimensions & Tires
2WD Wheelbase	116.7 inches 296 cm
4WD Wheelbase	113.6 inches 288 cm
Weight	17086 to 18662 pounds
Front tire	11.00-16
2WD Rear tire	23.1-34
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12
Battery AH	152

References
160-90 /160-90 dt turbo PS published by Fiat
160-90 turbo published by Fiat

Engine

Engine Detail — 494.4 ci / 8.1 L Diesel

Manufacturer	Fiat-Iveco 8365.25
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	494.4 ci 8.1 L
Bore/Stroke	4.536x5.12 inches 115 x 130 mm
Power	160 hp 119.3 kW
Fuel system	direct injection
Air cleaner	dry two-stage
Pre-heating	thermostart
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	19.3 qts 18.3 L

Transmission

Transmission options
24-speed partial power shift
16-speed mechanical shuttle

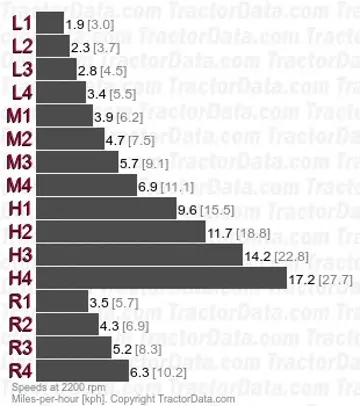

Transmission — 24 forward and 8 reverse partial power shift

Type	partial power shift
Gears	24 forward and 8 reverse
Clutch	hydraulic wet disc
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.
With 18.4/15-38 rear tires.

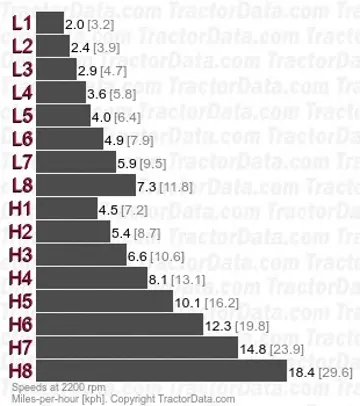

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Clutch	305mm dry disc
Oil capacity	59.1 qts 55.9 L
With 23.1-34 rear tires.

Dimensions

Fiat 160-90 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 23.1-34
4WD Standard tires (ag)	Front: 14.9-28. Rear: 23.1-34
2WD Optional tires (ag)	Front: 11.00-16. Rear: 30.5-32
2WD Optional tires (ag)	Front: 11.00-16. Rear: 20.8-38
2WD Optional tires (ag)	Front: 11.00-16. Rear: 24.5-32
4WD Optional tires (ag)	Front: 16.9-28. Rear: 30.5-32
4WD Optional tires (ag)	Front: 16.9-28. Rear: 20.8-38

Dimensions
2WD Wheelbase	116.7 inches 296 cm
4WD Wheelbase	113.6 inches 288 cm
2WD Length	170.8 inches 433 cm
4WD Length	174 inches 441 cm
2WD Operating weight	17086 lbs 7750 kg
4WD Operating weight	18662 lbs 8465 kg
2WD Clearance (front axle)	25 inches 63 cm
4WD Clearance (front axle)	18.2 inches 46 cm
2WD Front tread	63 to 82.7 inches 160 to 210 cm
4WD Front tread	70.9 to 87.4 inches 180 to 221 cm
Rear tread	59.8 to 87.4 inches 151 to 221 cm

Fiat 160-90 Height
Hood	71.1 inches 180 cm
ROPS	109.7 inches 278 cm
Cab	112.2 inches 284 cm
Exhaust	116.5 inches 295 cm

Photos

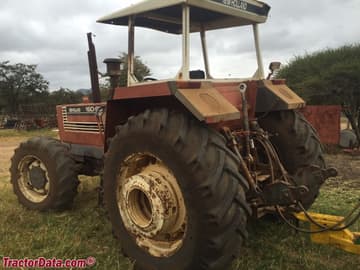

South African New Holland (FIAT) 160-90 with ADE engine.

South African New Holland (FIAT) 160-90 with ADE engine.
