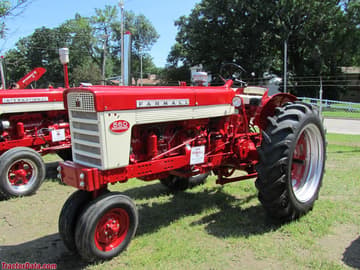

Farmall 560

1958 - 1963

Row-Crop tractor

Manufacturer

Farmall (a part of International Harvester)

Row-Crop tractor

Total built

65,982

Original price

$5,500 (1963)

The Farmall 560 experienced problems due to the final drive not being strong enough to handle the power of the engine. An entirely new rear end was offered by International in mid 1959, and the company sponsored a massive replacement program.

IH 560

standard-tread

Hi-Clear

high-crop

Drawbar (claimed)

54.8 hp 40.9 kW

PTO (claimed)

59.48 hp 44.4 kW

Plows

5

Drawbar (tested)

53.12 hp 39.6 kW

PTO (tested)

63.03 hp 47.0 kW

Belt (tested)

60.11 hp 44.8 kW

Two-wheel drive

Steering

manual rack-and-pinion

hydrostatic power optional

Independent mechanical disc brakes

Open operator station.

Fuel

33 gal 124.9 L

37 gal (LP) 140.0 L

Hydraulic system

16 gal 60.6 L

Capacity

16 gal 60.6 L

Valves

1 to 3

Pump flow

12 gpm 45.4 lpm

17 gpmOptOptional 64.3 lpm

Steering flow

2.5 gpm 9.5 lpm

Type

IH Fast Hitch

Rear PTO

independent

Rear PTO Type

540 (1.375)

Wheelbase

96 inches 243 cm

100 inches (Hi-Clear) 254 cm

Weight

6563 to 6785 pounds

Front tire

6.00-16

Rear tire

12.4-38

Diameter

11 inches 27 cm

Width

7.5 inches 19 cm

Ground

negative

Charging system

generator

Charging amps

20

Batteries

1 (gas)

2 (diesel)

Battery volts

12 (gas)

6 (diesel)

A Corporate Tragedy - The Agony of International Harvester Company by Barbara Marsh

Farm Loaders published in 1962, by International Harvester

Farm Loaders published in 1965, by International Harvester

Farm Loaders published in 1970, by International Harvester

Operator's Manual Farmall 460 Diesel, 560 Diesel and International 560 Diesel Tractors (1014077R1) published in 1959

Operator's Manual Farmall 460, 560 and International 560 (1 014 051 R1) published in 1958

McCormick Farmall 560 Tractor published in 1958, by International Harvester

Elwood Front Wheel Drive published in 1963, by International Harvester

Direct-Start Diesel Tractors published in 1958, by International Harvester

International Harvester 4.6L 6-cyl diesel

International Harvester 4.3L 6-cyl gasoline

International Harvester 4.3L 6-cyl LP gas

Manufacturer

International Harvester D-282

Fuel Type

Diesel

Configuration

6-cylinder, liquid-cooled vertical I-head

Displacement

281.3 ci 4.6 L

Bore/Stroke

3.6875x4.3906 inches 94 x 112 mm

Air cleaner

oil bath

Compression

18.2:1

Rated RPM

1800

Firing order

1-5-3-6-2-4

Starter volts

12

Oil capacity

9 qts 8.5 L

Coolant capacity

16 qts 15.1 L

Exhaust valve clearance

0.027 inches (hot) 0.686 mm

Manufacturer

International Harvester C-263

Fuel Type

Gasoline

Configuration

6-cylinder, liquid-cooled vertical I-head

Displacement

263 ci 4.3 L

Bore/Stroke

3.5625x4.3906 inches 90 x 112 mm

Air cleaner

oil bath

Compression

7.2:1

Rated RPM

1800

Starter volts

12

Manufacturer

International Harvester

Fuel Type

LP gas

Configuration

6-cylinder, liquid-cooled vertical I-head

Displacement

263 ci 4.3 L

Bore/Stroke

3.5625x4.3906 inches 90 x 112 mm

Air cleaner

oil bath

Compression

8.75:1

Rated RPM

1800

Starter volts

12

5-speed sliding gear

10-speed partial power shift

Type

sliding gear

Gears

5 forward and 1 reverse

Oil capacity

64 qts 60.6 L

Tractor must be stopped and clutch used to shift gears.

With 13.6-38 rear tires.

Transmission

Torque Amplifier

Type

partial power shift

Gears

10 forward and 2 reverse

Oil capacity

64 qts 60.6 L

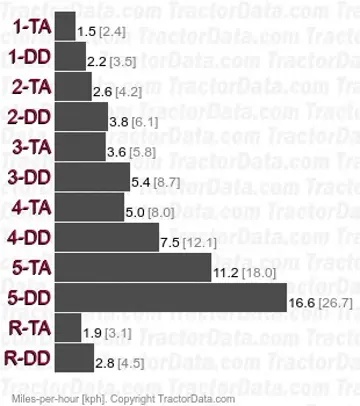

The Torque Amplifier (TA) allows a clutchless shift-on-the-move underspeed for any gear. With the TA lever forward, the TA is disengaged and the transmission is in direct drive (DD) mode. To engage the TA, the lever should be pulled quickly and smoothly to the rear. The TA on the 560 will free-wheel, so it should be disengaged when going downhill or towing the tractor to start it.

With 16.6-38 rear tires.

Ag front

6.00-16

6.00-20 (Hi-Clear)

Ag rear

12.4-38

Ag rear

13.6-38

15.5-38

Wheelbase

96 inches 243 cm

100 inches (Hi-Clear) 254 cm

Length

141 inches 358 cm

155 inches (Hi-Clear) 393 cm

Width

85 inches (min) 215 cm

88 inches (Hi-Clear max) 223 cm

107 inches (max) 271 cm

Height (steering wheel)

88 inches 223 cm

107 inches (Hi-Clear) 271 cm

Bar rear axle

2.75 inch diameter 69 mm

Operating

6,563 lbs (gas) 2976 kg

6,785 lbs (diesel) 3077 kg

Ballasted

9,460 lbs 4291 kg

NTTL 669: diesel Torque Amplifier 2WD

NTTL 671: gasoline Torque Amplifier 2WD

NTTL 675: LP gas Torque Amplifier 2WD

Diesel Torque Amplifier 2WD September 18 - 25, 1958 Link: Nebraska Tractor Test 669 file

PTO performance

Power at rated engine speed

59.48 hp 44.4 kW

Fuel use

4.1 gal/hour 15.5 l/hour

Drawbar performance

Max power

53.12 hp 39.6 kW

Gear 3 used for power test.

Max pull

7,347 lbs 3332 kg

Gear 1 used for pull test.

Gasoline Torque Amplifier 2WD September 24 - October 6, 1958 Link: Nebraska Tractor Test 671 file

PTO performance

Power at rated engine speed

63.03 hp 47.0 kW

Fuel use

5.0 gal/hour 18.9 l/hour

Drawbar performance

Max power

50.90 hp 38.0 kW

Gear 3 used for power test.

Max pull

7,588 lbs 3441 kg

Gear 1-TA used for pull test.

LP gas Torque Amplifier 2WD October 8 - 20, 1958 Link: Nebraska Tractor Test 675 file

Belt power (max)

60.11 hp 44.8 kW

Belt fuel use (max)

6.5 gal/hour 24.6 l/hour

Drawbar performance

Max power

43.96 hp 32.8 kW

Fuel use

5.1 gal/hour 19.3 l/hour

Max pull

7,524 lbs 3412 kg

Gear 1-TA used for pull test.
