Kubota MX5400

The Kubota MX5400 is a tractor produced by Kubota. It is equipped with a 148.6 ci 2.4 L engine. The rated power output is 53 hp 39.5 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3474 to 4268 pounds.

Overview

	2020 - MX SeriesUtility tractor
2020 -
MX Series
Utility tractor

Production
Manufacturer	Kubota
Utility tractor
Original price	$22,885 (2021 Gear 2WD ROPS )
	$37,531 (2021 Hydro 4WD Cab )

Kubota MX5400 Engine
Kubota 2.4L 4-cyl diesel
Fuel tank	11.9 gal 45.0 L
Engine details ...

Kubota MX5400 Power
Engine (gross)	55.5 hp 41.4 kW
Engine (net)	53 hp 39.5 kW
PTO (claimed)	46.5 hp 34.7 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post fodling ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Valves	3 OptOptional
Pump flow	9.5 gpm 36.0 lpm
Steering flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear Type	II/I
Control	position control with optional draft control
Rear lift	2310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
Wheelbase	74.6 inches 189 cm
Weight	3474 to 4268 pounds
Front tire	7.5L-15
2WD Rear tire	14.9-26
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	60
Battery volts	12

References
Diesel Tractor MX5400/MX6000 published in 2019, by Kubota

Engine

Engine Detail — 148.6 ci / 2.4 L Diesel

Manufacturer	Kubota V2403CR-T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	148.6 ci 2.4 L
Bore/Stroke	3.43x4.03 inches 87 x 102 mm
Gear Power (net)	53 hp 39.5 kW
Hydro Power (net)	53.8 hp 40.1 kW
Gear Power (gross)	55.5 hp 41.4 kW
Hydro Power (gross)	57 hp 42.5 kW
Air cleaner	dry
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission options
8-speed synchronized shuttle
hydrostatic

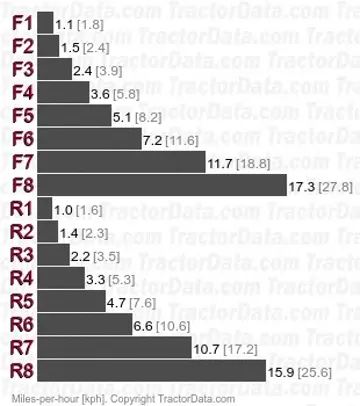

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota MX5400 Tires
2WD Standard tires (ag)	Front: 7.5L-15. Rear: 14.9-26
4WD Standard tires (ag)	Front: 9.5-16. Rear: 14.9-26

Dimensions
Wheelbase	74.6 inches 189 cm
2WD Length	127.8 inches 324 cm
4WD Length	125.8 inches 319 cm
Width	69.7 inches*Minimum width. 177 cm
Height (ROPS)	95.7 inches 243 cm
Height (cab)	92.7 inches 235 cm
Ground clearance	15.2 inches 38 cm
2WD Front tread	50.4 to 62.2 inches 128 to 157 cm
4WD Front tread	52.2 inches 132 cm
Rear tread	54.1 to 58.7 inches 137 to 149 cm

Kubota MX5400 Weight
2WD Gear ROPS	3474 lbs 1575 kg
4WD Gear ROPS	3716 lbs 1685 kg
4WD Gear Cab	4251 lbs 1928 kg
4WD Hydro ROPS	3734 lbs 1693 kg
4WD Hydro Cab	4268 lbs 1935 kg

Attachments

Attachment overview
Front-end loader
Backhoe
The BH92 backhoe was only available on tractors with ROPS.

Kubota BH92 Backhoe
Backhoe type	Kubota BH92 Backhoe
Transport height	100.1 inches 254 cm
2-Foot flat digging depth	109.8 inches 278 cm
Reach from pivot	150.4 inches 382 cm
Loading height	84.3 inches 214 cm
Bucket Rotation	180°

Photos

Kubota MX5400, right side.

Kubota MX5400, left side.

Kubota MX5400 cab interior.
