Fendt F255GT
The Fendt F255GT is a tractor produced by Fendt. It is equipped with a 229.92 ci 3.8 L engine. The rated power output is 70 hp 52.2 kW. Transmission: 20 forward and 6 reverse. Operating weight: 7220 lbs 3274 kg.
Engine Power
70 hp
52.2 kW
Fuel & Capacities
Diesel
Transmission
20 forward and 6 reverse
Operating Weight
7220 lbs
3274 kg
Fendt F255GT Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1976 - 1982
Tool Carrier tractor |
|---|---|
1976 - 1982 | |
Tool Carrier tractor | |
Production | |
|---|---|
Manufacturer | Fendt |
Tool Carrier tractor | |
Fendt F255GT Power | |
|---|---|
Engine | 70 hp
52.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical brakes | |
Cab standard. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2538 psi
175.0 bar |
Pump flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 4520 lbs
2050 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Front PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 118 inches
299 cm |
Weight | 7220 lbs
3274 kg |
Front tire | 7.50-16 |
Rear tire | 13.6-36 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 33 |
Charging volts | 14 |
Battery volts | 12 |
Battery AH | 110 |
References | |
|---|---|
 | |
Kommunal-System 255/275 GT published in 1982, by Fendt |
Engine
Engine options | |
|---|---|
KHD 2.8L 3-cyl diesel | |
KHD 3.8L 4-cyl diesel |
Engine Detail — 172.4 ci / 2.8 L Diesel
Manufacturer | KHD |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 172.4 ci
2.8 L |
Bore/Stroke | 3.937x4.72 inches
100 x 120 mm |
Power | 55 hp
41.0 kW |
Fuel system | direct injection |
Rated RPM | 2300 |
Starter volts | 12 |
Engine Detail — 229.92 ci / 3.8 L Diesel
Manufacturer | KHD F4L912H |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 229.92 ci
3.8 L |
Bore/Stroke | 3.937x4.72 inches
100 x 120 mm |
Power | 70 hp
52.2 kW |
Rated RPM | 2300 |
Transmission
Transmission options | |
|---|---|
14-speed synchromesh | |
20-speed creeper |

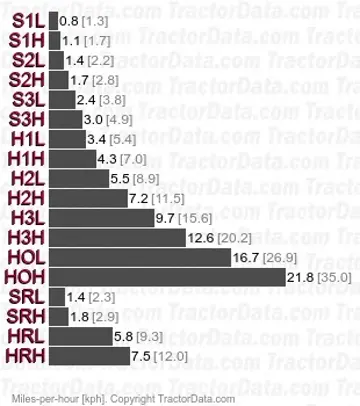

Transmission — 14 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 14 forward and 4 reverse |
Clutch | mechanical dry disc |
With 16.9/14-34 rear tires. | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 6 reverse |
 | |
Dimensions
Fendt F255GT Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 13.6-36 |
Dimensions | |
|---|---|
Wheelbase | 118 inches
299 cm |
Length | 182.6 inches
463 cm |
Width | 72.8 inches
184 cm |
Height (cab) | 100.9 inches
256 cm |
Weight | 7220 lbs
3274 kg |
Ground clearance | 18.9 inches
48 cm |
Front tread | 53.5/59.1/64.6/66.9/70.9 inches
135/150/164/169/180 cm |
Rear tread | 59.1 inches
150 cm |
