Fiat 1000

The Fiat 1000 is a tractor produced by Fiat. It is equipped with a 316.3 ci 5.2 L engine. The rated power output is 100 hp 74.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 8423 to 9746 pounds.

Overview

	1972 - 1976	1972 - 1976

Production
Manufacturer	Fiat

Fiat 1000 Engine
Fiat 5.2L 6-cyl diesel
Fuel tank	30.4 gal 115.1 L
Engine details ...

Fiat 1000 Transmission
12-speed partially synchronized
Transmission details ...

Fiat 1000 Power
Engine	100 hp 74.6 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Open operator station.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6615 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	97.6 inches 247 cm
4WD Wheelbase	99.2 inches 251 cm
Weight	8423 to 9746 pounds
Front tire	7.50-20
2WD Rear tire	16.9/14-38
Full dimensions and tires ...

Engine

Engine Detail — 316.3 ci / 5.2 L Diesel

Manufacturer	Fiat 8065.02
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	316.3 ci 5.2 L
Bore/Stroke	3.94x4.33 inches 100 x 110 mm
Power	100 hp 74.6 kW
Compression	17:1
Rated RPM	2400
Starter volts	12

Transmission

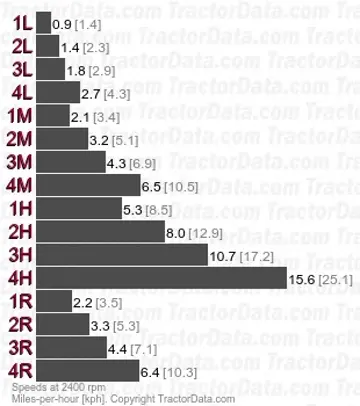

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Four synchronized gear in three ranges, plus reverse range. Available creeper range.

Dimensions

Fiat 1000 Tires
2WD Standard tires (ag)	Front: 7.50-20. Rear: 16.9/14-38
	Front: 11.2/10-28. Rear: 16.9/14-38 (4WD)

Dimensions
2WD Wheelbase	97.6 inches 247 cm
4WD Wheelbase	99.2 inches 251 cm
2WD Length	164.2 inches 417 cm
4WD Length	166.9 inches 423 cm
Width	82.3 inches 209 cm
2WD Height (hood)	63.8 inches 162 cm
4WD Height (hood)	68.9 inches 175 cm
2WD Weight	8423 lbs 3820 kg
	9746 lbs (4WD) 4420 kg

Photos

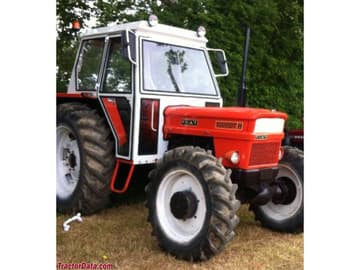

Fiat 1000DT-H
