Fiat 180-90

The Fiat 180-90 is a tractor produced by Fiat. It is equipped with a 494.4 ci 8.1 L engine. The rated power output is 180 hp 134.2 kW. Transmission: 16 forward and reverse. Operating weight: 13955 to 15190 pounds.

Overview

	1984 - 1994 90 SeriesRow-Crop tractor
1984 - 1994
90 Series
Row-Crop tractor

Production
Manufacturer	Fiat
Row-Crop tractor

Variants
180-90	similar Hesston model

Fiat 180-90 Engine
Fiat-Iveco 8.1L 6-cyl diesel
Fuel tank	74 gal 280.1 L
Engine details ...

Fiat 180-90 Power
Engine	180 hp 134.2 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with available air-conditioning.

Hydraulics
Pump flow	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type	II
Rear lift	14650 lbs 6645 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
2WD Wheelbase	116.7 inches 296 cm
4WD Wheelbase	112.7 inches 286 cm
Weight	13955 to 15190 pounds
Front tire	11.00-16
2WD Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12
Battery AH	176

References
180-90 turbo published by Fiat

Engine

Engine Detail — 494.4 ci / 8.1 L Diesel

Manufacturer	Fiat-Iveco 8365.25
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	494.4 ci 8.1 L
Bore/Stroke	4.53x5.12 inches 115 x 130 mm
Power	180 hp 134.2 kW
Fuel system	direct injection
Pre-heating	thermostart
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	19.3 qts 18.3 L

Transmission

Transmission options
24-speed partial power shift
16-speed

Transmission — 24 forward and 8 reverse partial power shift

Type	partial power shift
Gears	24 forward and 8 reverse
Clutch	wet disc
Four power-shift gears (1-4) in three forward ranges (low, medium, high) plus reverse range. Additional creeper mode doubles available ranges.
With 20.8-38 rear tires.

Transmission — 16 forward and reverse

Gears

16 forward and reverse

Dimensions

Fiat 180-90 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 20.8-38
4WD Standard tires (ag)	Front: 16.9/14-28. Rear: 20.8/8-38

Dimensions
2WD Wheelbase	116.7 inches 296 cm
4WD Wheelbase	112.7 inches 286 cm
2WD Length	184.8 inches 469 cm
4WD Length	177.6 inches 451 cm
2WD Operating weight	13955 lbs 6329 kg
4WD Operating weight	15190 lbs 6890 kg

Fiat 180-90 Height
Steering wheel	86.2 inches 218 cm
Hood	71.3 inches 181 cm
ROPS	109.7 inches 278 cm
Cab	112.2 inches 284 cm
Exhaust	116.5 inches 295 cm

Photos

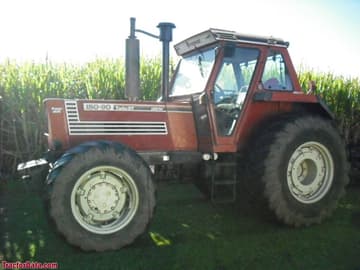

Fiat 180-90

Fiat 180-90
