Fiat 1580

The Fiat 1580 is a tractor produced by Fiat. It is equipped with a 494.38 ci 8.1 L engine. The listed engine power is Diesel (listed): 155 hp / 115.6 kW; Diesel (listed): 160 hp / 119.3 kW. Transmission: 12 forward and reverse. Drive type: 4x2 2WD. Operating weight: 14486 lbs 6570 kg.

Overview

	1979 - 1984 80 SeriesRow-Crop tractor 80 Series Row-Crop tractor

Production
Manufacturer	Fiat
Row-Crop tractor

Variants
1580	2WD
1580DT	4WD
1580	similar Hesston model

Fiat 1580 Engine
Fiat 8.1L 6-cyl diesel
Fuel tank	74 gal 280.1 L
Engine details ...

Fiat 1580 Power
Engine	160 hp 119.3 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (1580DT)
Power steering
Wet disc brakes
Cab standard. Four-post ROPS with canopy available.

Hydraulics
Pump flow	14.7 gpm 55.6 lpm

Tractor hitch
Rear Type	III
Rear lift	11900 lbs 5397 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	113.78 inches 289 cm
Weight	14486 lbs 6570 kg
Front tire	14.9-28
Rear tire	18.4-38
Full dimensions and tires ...

References
1580/1580DT Turbo published in 1983

Engine

Engine Detail — 494.38 ci / 8.1 L Diesel

Manufacturer	Fiat 8365-05
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	494.38 ci 8.1 L
Bore/Stroke	4.5276x5.12 inches 115 x 130 mm
Power	155 hp 115.6 kW
Rated RPM	2100

Engine Detail — 494.38 ci / 8.1 L Diesel

Manufacturer	Fiat
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled, The 1580 Turbo became available in 1982.
Displacement	494.38 ci 8.1 L
Bore/Stroke	4.5276x5.12 inches 115 x 130 mm
Power	160 hp 119.3 kW
Rated RPM	2200
Torque	418.8 lb-ft 567.9 Nm
Torque RPM	1400

Transmission

Transmission options
12-speed
24-speed creeper
12-speed mechanical shuttle

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.

Transmission — 24 forward and 8 reverse creeper

Type	creeper
Gears	24 forward and 8 reverse
Clutch	355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.

Dimensions

Fiat 1580 Tires
Ag front	14.9-28
Ag rear	18.4-38

Dimensions
Wheelbase	113.78 inches 289 cm
Length	174.80 inches 443 cm
Height	117.72 inches 299 cm
Weight	14486 lbs 6570 kg

Photos

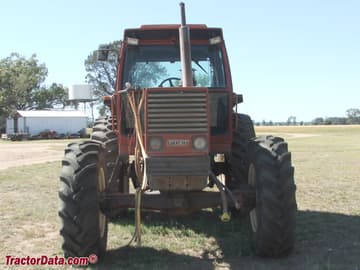

Fiat 1580DT row-crop tractor.
