Fiat 1300 Super
The Fiat 1300 Super is a tractor produced by Fiat. It is equipped with a 452.28 ci 7.4 L engine. The listed engine power is Diesel (listed): 150 hp / 111.9 kW. Transmission: 16 forward and 4 reverse. Operating weight: 11466 lbs 5200 kg.
Engine Power
Diesel (listed): 150 hp / 111.9 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
16 forward and 4 reverse
Operating Weight
11466 lbs
5200 kg
Overview
 | 1976 - 1979
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Row-Crop tractor | |
Fiat 1300 Super Engine | |
|---|---|
Fiat 7.4L 6-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
Fiat 1300 Super Power | |
|---|---|
Engine | 150 hp
111.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | inboard planetary |
Differential lock | mechanical rear |
Power steering | |
Mechanical wet disc brakes | |
Open operator station. Four-post ROPS and cab available. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 12.9 gpm
48.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and low-link draft control |
Rear lift | 7386 lbs
3350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 109 inches
276 cm |
Weight | 11466 lbs
5200 kg |
Front tire | 11.00-16 |
2WD Rear tire | 18.4/15-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
1000 super-1300 super Mark 4 published in 1979, by Fiat | |
1300 Super published in 1976, by Fiat | |
1300 Super published in 1978, by Fiat |
Engine
Engine Detail — 452.28 ci / 7.4 L Diesel
Manufacturer | Fiat OM CP3/100 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 452.28 ci
7.4 L |
Bore/Stroke | 4.33x5.12 inches
110 x 130 mm |
Power | 150 hp
111.9 kW |
Air cleaner | oil bath |
Rated RPM | 2400 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed | |
16-speed creeper |

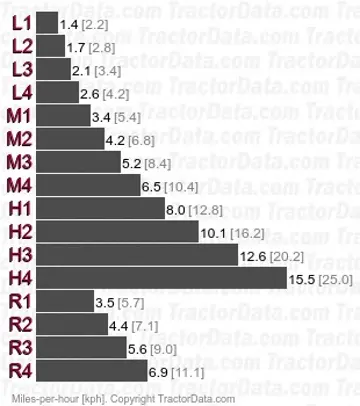

Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | 355.6mm dry disc |
Four gears in three ranges, plus reverse range. | |
 | |
Transmission — 16 forward and 4 reverse creeper
Type | creeper |
Gears | 16 forward and 4 reverse |
Clutch | 355.6mm dry disc |
Optional creeper adds an additional range to the transmission. | |
 | |
Dimensions
Fiat 1300 Super Tires | |
|---|---|
2WD Standard tires (ag) | Front: 11.00-16. Rear: 18.4/15-38 |
Dimensions | |
|---|---|
Wheelbase | 109 inches
276 cm |
Length | 164.8 inches
418 cm |
Weight | 11466 lbs
5200 kg |
Front tread | 63 to 86.6 inches
160 to 219 cm |
Rear tread | 66.9 to 90.6 inches
169 to 230 cm |
Fiat 1300 Super Height | |
|---|---|
Steering wheel | 80.7 inches
204 cm |
Hood | 71.7 inches
182 cm |
Exhaust | 110.6 inches
280 cm |
Photos

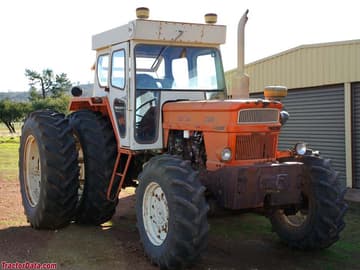

Fiat 1300 Super
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 1300 Super based on its 150 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 1300 Super.
Estimated Continuous Field Runtime: 6.8 hrs
Approximately 6.8 hours of continuous field operation at ~75% rated power on a full tank (52.8 gal / 199.9 L).
Estimated 75% Load Fuel Burn~7.8 gal/hr (29.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 1300 Super Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 1300 Super.
Converted Equivalents:
Horsepower (HP)150 hp
Kilowatts (kW)111.9 kW
Metric Horsepower (PS / CV)152.1 PS
Direct Competitor Comparison
Compare Fiat 1300 Super against same-era industry alternatives in the same horsepower class.
Current Model
Fiat
Fiat 1300 Super
Engine Power:Diesel (listed): 150 hp / 111.9 kW
★ Baseline Reference
