Fiat 1880
The Fiat 1880 is a tractor produced by Fiat. It is equipped with a 494.38 ci 8.1 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 12 forward and reverse. Operating weight: 14773 lbs 6701 kg.
Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
74 gal
280.1 L
Transmission
12 forward and reverse
Operating Weight
14773 lbs
6701 kg
Overview
 | 1979 - 1984
80 SeriesRow-Crop tractor
80 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Fiat |
Row-Crop tractor | |
Variants | |
|---|---|
1880 | 2WD |
1880DT | 4WD |
Fiat 1880 Engine | |
|---|---|
Fiat 8.1L 6-cyl diesel | |
Fuel tank | 74 gal
280.1 L |
Engine details ...  | |
Fiat 1880 Power | |
|---|---|
Engine | 180 hp
134.2 kW |
PTO (claimed) | 162 hp
120.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Cab standard. Four-post ROPS with canopy available. | |
Hydraulics | |
|---|---|
Pump flow | 14.7 gpm
55.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 13010 lbs
5901 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113.78 inches
289 cm |
Weight | 14773 lbs
6701 kg |
Front tire | 16.9-28 |
Rear tire | 20.8-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 494.38 ci / 8.1 L Diesel
Manufacturer | Fiat 8365-25 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 494.38 ci
8.1 L |
Bore/Stroke | 4.5276x5.12 inches
115 x 130 mm |
Power | 180 hp
134.2 kW |
Rated RPM | 2100 |
Transmission
Transmission options | |
|---|---|
12-speed | |
24-speed creeper | |
12-speed mechanical shuttle |
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | 355.6 cerametallic dry disc |
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range. | |
Transmission — 24 forward and 8 reverse creeper
Type | creeper |
Gears | 24 forward and 8 reverse |
Clutch | 355.6 cerametallic dry disc |
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range. | |
Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Clutch | 355.6 cerametallic dry disc |
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle. | |
Dimensions
Fiat 1880 Tires | |
|---|---|
Ag front | 16.9-28 |
Ag rear | 20.8-38 |
Dimensions | |
|---|---|
Wheelbase | 113.78 inches
289 cm |
Length | 177.56 inches
451 cm |
Height | 117.72 inches
299 cm |
Weight | 14773 lbs
6701 kg |
Photos

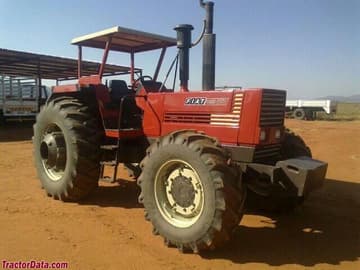

Fiat 1880
Fiat 1880
Fiat 1880
Recommended Implements & Sizing Guide
Engineering recommendations for Fiat 1880 based on its 180 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Fiat 1880.
Estimated Continuous Field Runtime: 7.9 hrs
Approximately 7.9 hours of continuous field operation at ~75% rated power on a full tank (74 gal / 280.1 L).
Estimated 75% Load Fuel Burn~9.4 gal/hr (35.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Fiat 1880 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat 1880.
Converted Equivalents:
Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS
