Fiat 980

The Fiat 980 is a tractor produced by Fiat. It is equipped with a 316.21 ci 5.2 L engine. The rated power output is 98 hp 73.1 kW. Transmission: 16 forward and 4 reverse. Operating weight: 7628 to 8289 pounds.

Overview

	1979 - 1984	1979 - 1984

Production
Manufacturer	Fiat

Fiat 980 Engine
Fiat 5.2L 6-cyl diesel
Fuel tank	30.6 gal 115.8 L
Engine details ...

Fiat 980 Power
Engine	98 hp 73.1 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Open operator station. ROPS and cab available.

Hydraulics
Type	open center
Pump flow	10.9 gpm 41.3 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	7056 lbs 3200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2124
	1000@2400

Dimensions & Tires
Wheelbase	100 inches 254 cm
Weight	7628 to 8289 pounds
Front tire	7.50-20
2WD 12.4/11-28:16.9/14-38 4WD} Rear tire	16.9/14-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 316.21 ci / 5.2 L Diesel

Manufacturer	Fiat 8065
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	316.21 ci 5.2 L
Bore/Stroke	3.937x4.33 inches 100 x 110 mm
Power	98 hp 73.1 kW
Air cleaner	oil bath
Compression	17:1
Rated RPM	2400
Starter volts	12

Transmission

Transmission options
12-speed synchronized
16-speed creeper

Transmission — 12 forward and 3 reverse synchronized

Type	synchronized
Gears	12 forward and 3 reverse
Clutch	dry disc
Transmission
Type	creeper
Gears	16 forward and 4 reverse

Dimensions

Fiat 980 Tires
2WD 12.4/11-28 Standard tires (ag)	Front: 7.50-20. Rear: 16.9/14-38

Dimensions
Wheelbase	100 inches 254 cm
Length	157.5 inches 400 cm
Height	104.3 inches 264 cm
2WD Weight	7628 lbs 3460 kg
4WD Weight	8289 lbs 3759 kg

Photos

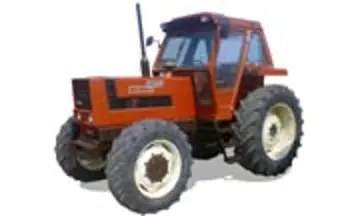

Fiat 980 with cab, right side.

Fiat 980 with ROPS, left side.
