Fiat F100

The Fiat F100 is a tractor produced by Fiat. It is equipped with a 357.64 ci 5.9 L engine. The rated power output is 100 hp 74.6 kW. Transmission: Hi-Lo. Operating weight: 10143 lbs 4600 kg.

Engine Power
100 hp 74.6 kW
Fuel & Capacities
Diesel
Transmission
Hi-Lo
Operating Weight
10143 lbs 4600 kg

Fiat F100 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

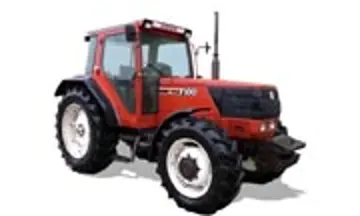

Fiat F100 tractor photo
1990 - 1996 Winner SeriesRow-Crop tractor
1990 - 1996
Winner Series
Row-Crop tractor
Production
Manufacturer
Fiat
Row-Crop tractor
Fiat F100 Power
Engine
100 hp 74.6 kW
Mechanical
Two- or four-wheel drive
Steering
hydraulic power
Wet disc brakes
Cab standard. Air-conditioning optional.
Hydraulics
Pump flow
14.5 gpm 54.9 lpm
Tractor hitch
Rear Type
II
Control
position control and lower-link draft sensing
Rear lift
10363 lbs 4700 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
electro-hydraulic
Rear PTO Type
540/1000
540/750/1000 (optional)
Dimensions & Tires
Wheelbase
109.5 inches 278 cm
Weight
10143 lbs 4600 kg
Front tire
11.00-16
Rear tire
18.4-34 (2WD)
Full dimensions and tires ...

Engine

Engine options
Iveco 5.4L 6-cyl diesel
Fiat 5.9L 6-cyl diesel

Engine Detail — 330.67 ci / 5.4 L Diesel

Manufacturer
Iveco 8065.06
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled
Displacement
330.67 ci 5.4 L
Bore/Stroke
3.9370x4.53 inches 100 x 115 mm
Power
100 hp 74.6 kW
Rated RPM
2300
Starter type
electric

Engine Detail — 357.64 ci / 5.9 L Diesel

Manufacturer
Fiat 8065.05
Fuel Type
Diesel
Configuration
6-cylinder
Displacement
357.64 ci 5.9 L
Bore/Stroke
4.0945x4.53 inches 104 x 115 mm
Rated RPM
2300

Transmission

Transmission options
16-speed
20-speed
32-speed

Transmission — 16 forward and reverse

Gears
16 forward and reverse
Clutch
hydraulic cerametallic dry disc
Four gears in four ranges with synchronized shuttle. Also available as a 32-32 speed creeper.

Transmission — Eco-Speed

Transmission
Eco-Speed
Gears
20 forward and 16 reverse
Clutch
hydraulic cerametallic dry disc
Eco-Speed adds a 40 KPH overdrive to the 16-speed transmission. Also available as a 40-32 speed creeper.

Transmission — Hi-Lo

Transmission
Hi-Lo
Gears
32 forward and 16 reverse
Clutch
hydraulic cerametallic dry disc
Electro-hydraulic high-low on the base 16-speed transmission. Available in 30 KPH and 40 KPH versions. Also available as 64-32 speed creeper.

Dimensions

Fiat F100 Tires
Standard tires (ag)
Front: 11.00-16. Rear: 18.4-34 (2WD)
Front: 14.9-28. Rear: 18.4-34 (4WD)
Dimensions
Wheelbase
109.5 inches 278 cm
Length
183.1 inches 465 cm
Height
110.6 inches 280 cm
Weight
10143 lbs 4600 kg

Photos

Fiat F100 tractor photo

Fiat F100 tractor photo

Fiat F100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Fiat F100.

Converted Equivalents:

Horsepower (HP)100 hp
Kilowatts (kW)74.6 kW
Metric Horsepower (PS / CV)101.4 PS
