Ford 8210
The Ford 8210 is a tractor produced by Ford. It is equipped with a 401 ci 6.6 L engine. The rated power output is 110 hp 82.0 kW. Transmission: Dual Power. Operating weight: 8730 to 9370 pounds.
Engine Power
110 hp
82.0 kW
Fuel & Capacities
47 gal
177.9 L
Transmission
Dual Power
Operating Weight
8730 to 9370 pounds
Ford 8210 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1991
Row-Crop tractor |
|---|---|
1982 - 1991 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Ford |
Row-Crop tractor | |
Original price was $49,000 in 1991 | |
Ford 8210 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Fuel tank | 47 gal
177.9 L |
Engine details ...  | |
Ford 8210 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Ford 8210 Power | |
|---|---|
Engine (gross) | 115 hp
85.8 kW |
Engine (net) | 110 hp
82.0 kW |
PTO (claimed) | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Mechanical wet disc brakes | |
Cab standard with air-conditioning. Optional AM/FM radio. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 to 4 |
SCV flow | 18.2 gpm
68.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position control and top-link draft sensing |
Rear lift (at 24"/610mm) | 4435 lbs
2011 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1902 |
1000@2049 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 109.6 inches
278 cm |
Weight | 8730 to 9370 pounds |
Front tire | 14.9-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 72 |
Battery volts | 12 |
Battery AH | 128 |
References | |
|---|---|
 | |
Front-end Loaders published in 1995, by New Holland | |
If you're looking for tractor quality, look to Ford published in 1982 | |
Generation III Tractors - Models 7810 and 8210 published in 1991, by Ford | |
8210 - 95 PTO hp Tractor published in 1988, by Ford | |
Tractor Buyer's Guide published in 1989, by Ford | |
Sales Reference Guide published in 1986, by Ford |
Engine
Engine Detail — 401 ci / 6.6 L Diesel
Manufacturer | Ford |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 401 ci
6.6 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power (net) | 110 hp
82.0 kW |
Power (gross) | 115 hp
85.8 kW |
Air cleaner | dual dry element |
Pre-heating | thermostart |
Compression | 16.3:1 |
Rated RPM | 2300 |
Starter volts | 12 |
Oil capacity | 20 qts
18.9 L |
Coolant capacity | 22.5 qts
21.3 L |
Transmission

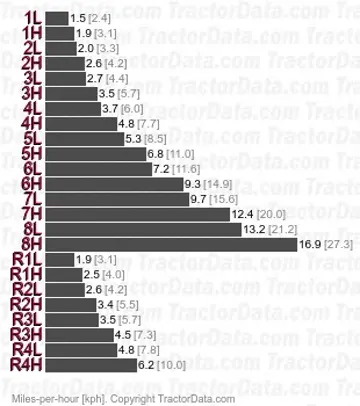

Transmission — Dual Power
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | 330mm dry disc |
Oil capacity | 60 qts
56.8 L |
 | |
Dimensions
Ford 8210 Tires | |
|---|---|
Ag front | 14.9-24 |
Ag rear | 18.4-34 |
Ag front | 14.9-28 |
Ag rear | 18.4-38 |
16.9-38 | |
Dimensions | |
|---|---|
Wheelbase | 109.6 inches
278 cm |
Length | 176.6 inches
448 cm |
2WD Weight | 8730 lbs
3959 kg |
4WD Weight | 9370 lbs
4250 kg |
Clearance (front axle) | 19.6 inches
49 cm |
Front tread | 60 to 79 inches
152 to 200 cm |
Rear tread | 60 to 80 inches
152 to 203 cm |
Ford 8210 Height | |
|---|---|
Steering wheel | 86.3 inches
219 cm |
Cab | 114 inches
289 cm |
Exhaust | 119.6 inches
303 cm |
