Deutz-Fahr Agroplus 100

The Deutz-Fahr Agroplus 100 is a tractor produced by Deutz Fahr. It is equipped with a 292.16 ci 4.8 L engine. The rated power output is 99 hp 73.8 kW. Transmission: Synchrosplit. Operating weight: 9259 lbs 4199 kg.

Overview

	1997 - 2004 Agroplus SeriesUtility tractor
1997 - 2004
Agroplus Series
Utility tractor

Production
Manufacturer	Deutz-Fahr
Utility tractor

Deutz-Fahr Agroplus 100 Engine
Deutz 4.8L 6-cyl diesel
Fuel tank	37 gal 140.0 L
Engine details ...

Deutz-Fahr Agroplus 100 Power
Engine	99 hp 73.8 kW

Mechanical
Four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic front and rear
Power steering
Wet disc brakes
Cab standard with available air-conditioning.

Hydraulics
Type	open center
Pressure	2683 psi 185.0 bar
Pump flow	14.8 gpm 56.0 lpm

Tractor hitch
Rear Type	II
Control	lower-link draft sensing
Rear lift	14330 lbs 6500 kg
Front Hitch	II OptOptional
Front lift	6614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Front PTO	independent
Clutch	electro-hydraulic wet disc
Front PTO Type	1000 (1.375)
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	101.1 inches 256 cm
Weight	9259 lbs 4199 kg
Front tire	13.6R28
Rear tire	16.9R38
Full dimensions and tires ...

References
Agroplus 75 85 95 100 published in 1998, by Deutz-Fahr
Agroplus 85 100 published in 1997, by Deutz-Fahr

Engine

Engine Detail — 292.16 ci / 4.8 L Diesel

Manufacturer	Deutz BF6M 1012EC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	292.16 ci 4.8 L
Bore/Stroke	3.70x4.52 inches 94 x 115 mm
Power	99 hp 73.8 kW
Rated RPM	2300
Torque	282 lb-ft 382.4 Nm
Torque RPM	1380
Oil capacity	13.2 qts 12.5 L

Transmission

Transmission options
30-speed
45-speed three-speed power shift

Transmission — Synchrosplit

Transmission	Synchrosplit
Gears	30 forward and 15 reverse
Five gears in three ranges. Available mechanical or hydraulic shuttle. Transmission may be equipped as a creeper with 20 speeds forward and reverse.

Transmission — 45 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	45 forward and reverse
Five gears in three ranges with three-speed power shift. Available mechanical or hydraulic shuttle. Transmission may be equipped an additional creeper range offering 60 speeds forward and reverse.

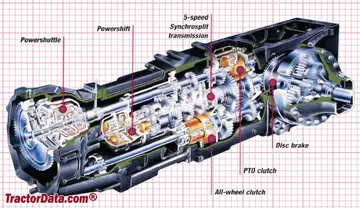

Deutz-Fahr Agroplus 100 Transmission

Dimensions

Deutz-Fahr Agroplus 100 Tires
Ag front	13.6R28
Ag rear	16.9R38

Dimensions
Wheelbase	101.1 inches 256 cm
Length	155.2 inches 394 cm
Width	81.1 inches 205 cm
Height (cab)	103.3 inches 262 cm
Front axle	Flange: 69.7 inch length 1770 mm
Flange rear axle	68.5 inch length 1739 mm

Deutz-Fahr Agroplus 100 Weight
Shipping	9259 lbs 4199 kg
Max capacity	15873 lbs 7199 kg
Max front axle	6614 lbs 3000 kg
Max rear axle	11023 lbs 5000 kg

Photos

Deutz-Fahr Agroplus 100 tractor photo
