General Electric E12 Elec-Trak

The General Electric E12 Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 12 hp / 8.9 kW. Transmission: Electro. Operating weight: 795 lbs 360 kg.

Overview

	1970 - 1973 Garden tractor

Production
Manufacturer	General Electric
Garden tractor
Built in Scotia, New York, USA

General Electric E12 Engine
12HP General Electric electric
Engine details ...

General Electric E12 Transmission
12-speed electric drive
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes

Tractor hitch
Type	sleeve hitch OptOptional

Dimensions & Tires
Weight	795 lbs 360 kg
Front tire	4.80x8
Rear tire	8.50x12
Full dimensions and tires ...

References
Elec-Trak published in 1969, by General Electric
Electrak - a new concept in home grounds care published in 1970, by General Electric
E12 Facts published in 1972, by General Electric
Elec-Trak owner's use and care manual (GEZ-4971)

Engine

Manufacturer	General Electric
electric
Power	12 hp 8.9 kW

Transmission

Transmission — Electro

Transmission	Electro
Type	electric drive
Gears	12 forward and 9 reverse
Oil capacity	2 qts 1.9 L
Electric drive with four ranges. Ranges should only be shifted when stopped.

Dimensions

General Electric E12 Tires
Lawn/turf front	4.80x8
Lawn/turf rear	8.50x12

Dimensions
Length	69 inches 175 cm
Width	35 inches 88 cm
Weight	795 lbs 360 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" front-mount mower deck
Snowblower
Blade
Front-end loader
Brinley-Hardy offered an electric 30-inch rear-mount tiller, model VV-100.

Photos

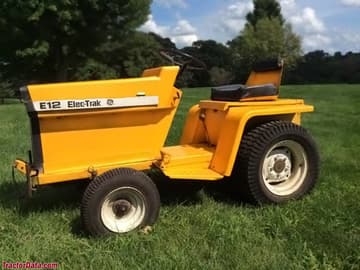

General Electric E12 Elec-Trak
