General Electric E15 Elec-Trak

The General Electric E15 Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 14 hp / 10.4 kW. Transmission: Electromatic. Operating weight: 850 lbs 385 kg.

Overview

	1970 - 1972 Garden tractor

Production
Manufacturer	General Electric
Garden tractor
Built in Scotia, New York, USA

General Electric E15 Engine
14HP General Electric electric
Engine details ...

General Electric E15 Transmission
28-speed electric drive
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch (optional)

Dimensions & Tires
Weight	850 lbs 385 kg
Front tire	6.50x8
Rear tire	9.50x12
Full dimensions and tires ...

References
Elec-Trak published in 1969, by General Electric
Electrak - a new concept in home grounds care published in 1970, by General Electric
Elec-Trak owner's use and care manual (GEZ-4971)
Elec-Trak E15 Facts published in 1972, by General Electric

Engine

Manufacturer	General Electric
electric
Power	14 hp 10.4 kW

Transmission

Transmission — Electromatic

Transmission	Electromatic
Type	electric drive
Gears	28 forward and 16 reverse
Oil capacity	2 qts 1.9 L
Electric drive with four ranges. Ranges should only be shifted when stopped.

Dimensions

General Electric E15 Tires
Lawn/turf front	6.50x8
Lawn/turf rear	9.50x12

Dimensions
Length	69 inches 175 cm
Width	36 inches 91 cm
Weight	850 lbs 385 kg

Attachments

Attachment overview
42" front-mount mower deck
Snowblower
Blade
Front-end loader
Brinley-Hardy offered an electric 30-inch rear-mount tiller, model VV-100.

42" Mower deck
Type	front-mount General Electirc
	3-blade
Cutting width	42 inches 106 cm

Photos

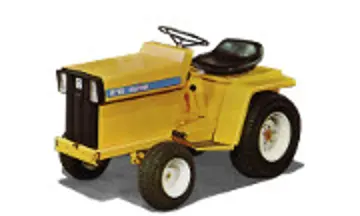

General Electric E15 Elec-Trak tractor photo
