General Electric E20 Elec-Trak

The General Electric E20 Elec-Trak is a tractor produced by General Electric Lawn Tractors. The listed engine power is Engine 1 (listed): 16 hp / 11.9 kW. Transmission: Torq-Matic. Operating weight: 900 lbs 408 kg.

Engine Power

Engine 1 (listed): 16 hp / 11.9 kW

Fuel & Capacities

2 qts 1.9 L

Transmission

Torq-Matic

Operating Weight

900 lbs 408 kg

Overview

	1970 - 1974 Garden tractor

Production
Manufacturer	General Electric
Garden tractor
Built in Scotia, New York, USA
Original price was $1,950 in 1973

General Electric E20 Engine
16HP General Electric electric
Engine details ...

General Electric E20 Transmission
32-speed electric drive
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Dimensions & Tires
Weight	900 lbs 408 kg
Front tire	6.50x8
Rear tire	10.50x12
Full dimensions and tires ...

Links
:

References

Elec-Trak published in 1969, by General Electric
Electrak - a new concept in home grounds care published in 1970, by General Electric
Elec-Trak owner's use and care manual (GEZ-4971)
Elec-Trak owner's use and care manual (GEZ-5919)

Engine

Manufacturer	General Electric
electric
Power	16 hp 11.9 kW

Transmission

Transmission — Torq-Matic

Transmission	Torq-Matic
Type	electric drive
Gears	32 forward and 16 reverse
Oil capacity	2 qts 1.9 L
Electric drive with four ranges. Ranges should only be shifted when stopped.

Dimensions

General Electric E20 Tires
Lawn/turf front	6.50x8
Lawn/turf rear	10.50x12

Dimensions
Length	69 inches 175 cm
Width	42 inches 106 cm
Height	39 inches 99 cm
Weight	900 lbs 408 kg

Attachments

Attachment overview
42" front-mount mower deck
Snowblower
Blade
Front-end loader
Brinley-Hardy offered an electric 30-inch rear-mount tiller, model VV-100.

42" Mower deck
Type	front-mount General Electirc
	3-blade
Cutting width	42 inches 106 cm

Photos

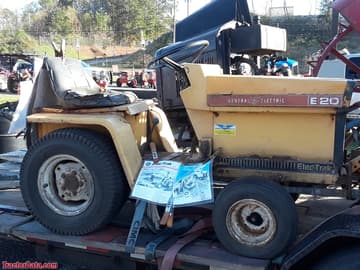

General Electric E20 Elec-Trak

Recommended Implements & Sizing Guide

Engineering recommendations for General Electric Lawn Tractors General Electric E20 Elec-Trak based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for General Electric Lawn Tractors General Electric E20 Elec-Trak.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

General Electric Lawn Tractors General Electric E20 Elec-Trak Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for General Electric Lawn Tractors General Electric E20 Elec-Trak.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS

Direct Competitor Comparison

Compare General Electric E20 Elec-Trak against same-era industry alternatives in the same horsepower class.
