Gravely 8199-G
The Gravely 8199-G is a tractor produced by Gravely Lawn Tractors. It is equipped with a 770 cc 47 ci engine. The listed engine power is Gasoline (gross): 19 hp / 14.2 kW. Transmission: 8 forward and 4 reverse. Operating weight: 857 lbs 388 kg.
Engine Power
Gasoline (gross): 19 hp / 14.2 kW
Fuel & Capacities
5.3 gal
20.1 L
Transmission
8 forward and 4 reverse
Operating Weight
857 lbs
388 kg
Overview
 | 1986
8000-G SeriesGarden tractor
8000-G Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Gravely (a part of Ariens) |
Garden tractor | |
Gravely 8199-G Engine | |
|---|---|
19HP Kohler 770cc 2-cyl gasoline | |
Engine details ...  |
Gravely 8199-G Transmission | |
|---|---|
8-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 5.3 gal
20.1 L |
Hydraulic system | 0.25 gal
0.9 L |
Hydraulics | |||
|---|---|---|---|
Capacity | 0.25 gal
0.9 L | ||
Oil type | ATF Dextron II | ATF Dextron II | |
ATF Dextron II |
|---|
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 52.25 inches
132 cm |
Weight | 857 to 895 pounds |
Front tire | 16x7.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 42 |
Battery Group | BCI 22F |
References | |
|---|---|
 | |
Riding Tractors published in 1986, by Gravely |
Engine
Engine Detail — 770 cc / 47 ci Gasoline
Manufacturer | Kohler KT-19 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Displacement | 770 cc
47 ci |
Bore/Stroke | 3.125x3.0625 inches
79 x 78 mm |
Power (gross) | 19 hp
14.2 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 8 forward and 4 reverse shaft-driven gear
Type | shaft-driven gear |
Gears | 8 forward and 4 reverse |
Oil capacity | 6 qts
5.7 L |
Oil type | 10W-40 SC |
Four gears (1-4) in two ranges (low-high) with forward/reverse clutches. The directional clutch must be in neutral to shift gears or ranges. | |
 | |
10W-40 SC |
|---|
Dimensions
Gravely 8199-G Tires | |
|---|---|
Lawn/turf front | 16x7.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 52.25 inches
132 cm |
Length | 82 inches
208 cm |
Width | 43.2 inches
109 cm |
Height | 46 inches
116 cm |
Weight | 857 lbs
388 kg |
Shipping weight | 895 lbs
405 kg |
5-bolt flange rear axle | |
Attachments
Attachment overview | |
|---|---|
40" mid-mount mower deck | |
50" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

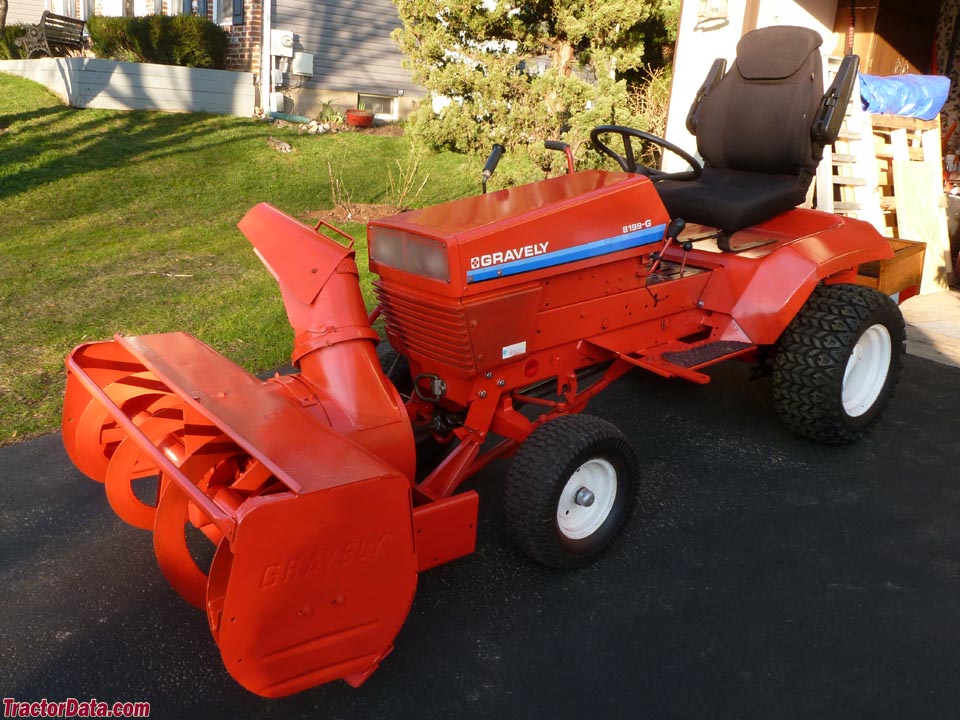

Gravely 8199-G
Recommended Implements & Sizing Guide
Engineering recommendations for Gravely Lawn Tractors Gravely 8199-G based on its 19 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Gravely Lawn Tractors Gravely 8199-G.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Gravely Lawn Tractors Gravely 8199-G Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Gravely Lawn Tractors Gravely 8199-G.
Converted Equivalents:
Horsepower (HP)19 hp
Kilowatts (kW)14.2 kW
Metric Horsepower (PS / CV)19.3 PS
