Hesston H-200 TW
The Hesston H-200 TW is a tractor produced by Hesston Lawn Tractors. It is equipped with a 880 cc 53.7 ci engine. The listed engine power is Gasoline (listed): 19.8 hp / 14.8 kW. Transmission: Sundstrand. Drive type: 3x2 2WD. Operating weight: 830 lbs 376 kg.
Engine Power
Gasoline (listed): 19.8 hp / 14.8 kW
Drive & Traction
3x2 2WD
Fuel & Capacities
4 gal
15.1 L
Transmission
Sundstrand
Operating Weight
830 lbs
376 kg
Overview
 | 1972 - 1976
Front Runner SeriesFront-mount mower
Front Runner Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | Hesston |
Front-mount mower | |
Built in Indianapolis, Indiana, USA | |
Variants | |
|---|---|
GMT | grounds maintenance tractor |
TW | three-wheeler |
TT | turf truck |
Hesston H-200 TW Engine | |
|---|---|
19.8HP Kohler 880cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Hesston H-200 TW Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Drive | 3x2 2WD |
Mechanical disc brakes | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 830 lbs
376 kg |
Front tire | 23x10.50-12 |
Rear tire | 20x8.00-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | flywheel alternator |
Charging amps | 20 |
Battery volts | 12 |
Battery AH | 45 |

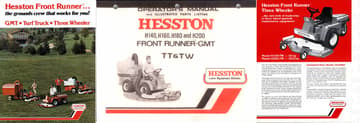

References | |
|---|---|
 | |
Operator's Manual Front Runner GMT-TT-TW (FR-1-1075) published in 1975 | |
Operator's Manual Front Runner GMT-TT-TW (F-5523) published in 1971 | |
Front Runner Three Wheeler published in 1975, by Hesston |
Engine
Engine Detail — 880 cc / 53.7 ci Gasoline
Manufacturer | Kohler K532S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Displacement | 880 cc
53.7 ci |
Bore/Stroke | 3.375x3.00 inches
86 x 76 mm |
Power | 19.8 hp
14.8 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3 qts
2.8 L |
Transmission
Transmission — Sundstrand
Transmission | Sundstrand |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Hesston H-200 TW Tires | |
|---|---|
Lawn/turf front | 23x10.50-12 |
Lawn/turf rear | 20x8.00-10 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 86 inches
218 cm |
Width | 44 inches
111 cm |
Height | 45 inches
114 cm |
Weight | 830 lbs
376 kg |
Front tread | 33.5 inches
85 cm |
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
60" front-mount mower deck | |
80" front-mount mower deck | |
Blade |
Photos
Hesston H-200 TW tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Hesston Lawn Tractors Hesston H-200 TW based on its 19.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hesston Lawn Tractors Hesston H-200 TW.
Estimated Continuous Field Runtime: 3.9 hrs
Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hesston Lawn Tractors Hesston H-200 TW Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hesston Lawn Tractors Hesston H-200 TW.
Converted Equivalents:
Horsepower (HP)19.8 hp
Kilowatts (kW)14.8 kW
Metric Horsepower (PS / CV)20.1 PS
