Homelite T-16S
The Homelite T-16S is a tractor produced by Homelite Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: 4 forward and reverse.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
2.5 gal
9.5 L
Transmission
4 forward and reverse
Overview
 | 1973
Garden tractorSimplicity built
Garden tractor
Simplicity built |
|---|
Production | |
|---|---|
Distributor | Homelite (a part of Textron) |
Manufacturer | Simplicity |
Garden tractor | |
Variants | |
|---|---|
T-16S | shuttle |
T-16H | hydrostatic |
Homelite T-16S Engine | |
|---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
Homelite T-16S Transmission | |
|---|---|
4-speed shuttle | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.1 inches
122 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 14 |
Battery volts | 12 |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 326430 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.5625x3.25 inches
90 x 83 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | paper cartridge with foam pre-cleaner |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and reverse shaft-driven shuttle
Type | shaft-driven shuttle |
Gears | 4 forward and reverse |
Dimensions
Homelite T-16S Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 48.1 inches
122 cm |
Length | 70 inches
177 cm |
Width | 37.5 inches
95 cm |
Height (steering wheel) | 41 inches
104 cm |
Height (hood) | 35.5 inches
90 cm |
Clearance (front axle) | 8 inches
20 cm |
Clearance (rear axle) | 6 inches
15 cm |
Front tread | 30.9 inches
78 cm |
Rear tread | 27 inches
68 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

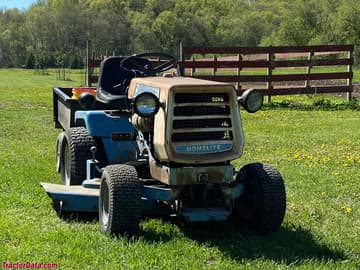

Homelite T-16S
Recommended Implements & Sizing Guide
Engineering recommendations for Homelite Lawn Tractors Homelite T-16S based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Homelite Lawn Tractors Homelite T-16S.
Estimated Continuous Field Runtime: 3 hrs
Approximately 3 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Homelite Lawn Tractors Homelite T-16S Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Homelite Lawn Tractors Homelite T-16S.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
