Honda H4514
The Honda H4514 is a tractor produced by Honda Lawn Tractors. It is equipped with a 358 cc 21.9 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 569 to 595 pounds.
Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
2.38 gal
9.0 L
Transmission
infinite forward and reverse
Operating Weight
569 to 595 pounds
Overview
 | 1990 - 1998 |
|---|
Production | |
|---|---|
Manufacturer | Honda |
Honda H4514 Engine | |
|---|---|
14HP Honda 358cc 2-cyl gasoline | |
Fuel tank | 2.38 gal
9.0 L |
Engine details ...  | |
Honda H4514 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 46.9 inches
119 cm |
Weight | 569 to 595 pounds |
Front tire | 15x6.00-6 |
Rear tire | 20.5x8.50-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 30 |
References | |
|---|---|
 | |
Owner's Manual Lawn Tractor H4514H (31758711) published in 1989 | |
Lawn Tractors published in 1989, by Honda | |
Honda Lawn Tractors published in 1993 |
Engine
Engine Detail — 358 cc / 21.9 ci Gasoline
Manufacturer | Honda GX360K1 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 358 cc
21.9 ci |
Bore/Stroke | 2.28x2.68 inches
58 x 68 mm |
Power | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 1.85 qts
1.8 L |
Sparkplug gap | 0.026 inches
0.660 mm |
Oil capacity | 1.16 qts
1.1 L |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Single control lever with stop for mowing range and transport range. | |
 | |
Dimensions
Honda H4514 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20.5x8.50-10 |
Dimensions | |
|---|---|
Wheelbase | 46.9 inches
119 cm |
Length | 71.5 inches
181 cm |
Width | 50.0 inches
127 cm |
Height | 41.3 inches
104 cm |
Shipping weight | 569 lbs (38-inch deck)
258 kg |
595 lbs (42-inch deck)
269 kg | |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
42" mid-mount mower deck |
Photos

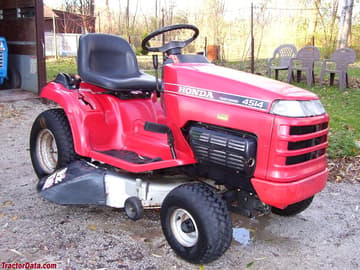

Honda H4514
Honda H4514
Honda H4514
Honda H4514
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda H4514.
Estimated Continuous Field Runtime: 3.3 hrs
Approximately 3.3 hours of continuous field operation at ~75% rated power on a full tank (2.4 gal / 9 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Honda Lawn Tractors Honda H4514 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda H4514.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
