Honda HF2114

The Honda HF2114 is a tractor produced by Honda Lawn Tractors. It is equipped with a 530 cc 32.34 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Tecumseh. Operating weight: 414 to 430 pounds.

Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
1.5 gal 5.7 L
Transmission
Tecumseh
Operating Weight
414 to 430 pounds

Overview

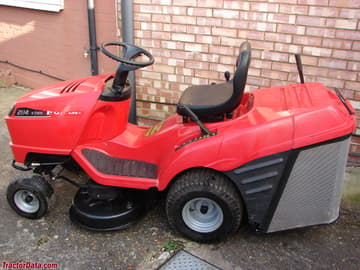

Honda HF2114 tractor photo
???? - 2003 Lawn tractor
???? - 2003
Lawn tractor
???? - 2003
Lawn tractor
Production
Manufacturer
Honda
Lawn tractor
Variants
HF2114S
gear
HF2114H
hydrostatic
Honda HF2114 Engine
10.4KW Honda 530cc 2-cyl gasoline
Fuel tank
1.5 gal 5.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Dimensions & Tires
Wheelbase
44.3 inches 112 cm
Weight
414 to 430 pounds
Front tire
13x5.00-6
Rear tire
18x8.50-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
20
References
HF2114 references literature
HF2114 (CG71505045H0)
Lawn & Garden 2003 published by Honda

Engine

Honda HF2114 tractor photo
???? - 2003 Lawn tractor
???? - 2003
Lawn tractor
???? - 2003
Lawn tractor

Engine Detail — 530 cc / 32.34 ci Gasoline

Manufacturer
Honda GCV520
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-twin
Displacement
530 cc 32.34 ci
Bore/Stroke
3.03x2.24 inches 77 x 57 mm
Power
14 hp 10.4 kW
Rated RPM
2700
Starter
electric
Starter volts
12

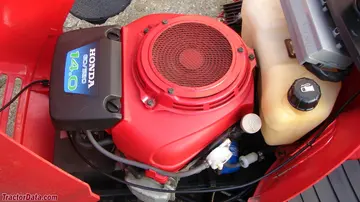

Honda HF2114 Engine
Honda HF2114 engine image
Image courtesy of Sorin Lungoci

Transmission

Honda HF2114 tractor photo
???? - 2003 Lawn tractor
???? - 2003
Lawn tractor
???? - 2003
Lawn tractor
Transmission options
5-speed gear
hydrostatic

Transmission — Tecumseh

Transmission
Tecumseh
Type
belt-driven gear
Gears
5 forward and 1 reverse
HF2114 belt-driven gear speeds

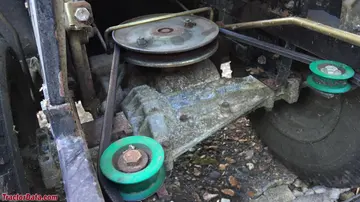

Honda HF2114 Transmission
Honda HF2114 transmission image
Image courtesy of Sorin Lungoci

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
HF2114 belt-driven hydrostatic speeds

Dimensions

Honda HF2114 tractor photo
???? - 2003 Lawn tractor
???? - 2003
Lawn tractor
???? - 2003
Lawn tractor
Honda HF2114 Tires
Lawn/turf front
13x5.00-6
Lawn/turf rear
18x8.50-8
Dimensions
Wheelbase
44.3 inches 112 cm
Length
71.9 inches 182 cm
Height (steering wheel)
42.7 inches 108 cm
Height (hood)
33.9 inches 86 cm
Gear Weight
414 lbs 187 kg
Hydro Weight
430 lbs 195 kg

Attachments

Honda HF2114 tractor photo
???? - 2003 Lawn tractor
???? - 2003
Lawn tractor
???? - 2003
Lawn tractor
36" Mower deck
Type
mid-mount Honda
2-blade with manual lift
Cutting width
36 inches 91 cm
Overall width
37.8 inches 96 cm
Cut height
1.2 to 3.2 inch 3 to 8 cm
Cut positions
7

Photos

Honda HF2114

Honda HF2114

Honda HF2114

Honda HF2114

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Honda Lawn Tractors Honda HF2114.

Estimated Continuous Field Runtime: 2.1 hrs

Approximately 2.1 hours of continuous field operation at ~75% rated power on a full tank (1.5 gal / 5.7 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Honda Lawn Tractors Honda HF2114 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Honda Lawn Tractors Honda HF2114.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
