Huber 15-30 Super Four
The Huber 15-30 Super Four is a tractor produced by Huber. It is equipped with a 382 ci 6.3 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 5940 lbs 2694 kg.
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Operating Weight
5940 lbs
2694 kg
Overview
 | 1921 - 1925
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Huber |
Standard-tread tractor | |
Built in Marion, Ohio, USA | |
Huber 15-30 Super Four Engine | |
|---|---|
Midwest 6.3L 4-cyl gasoline | |
Engine details ...  |
Huber 15-30 Super Four Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Huber 15-30 Super Four Power | |
|---|---|
Drawbar (claimed) | 15 hp
11.2 kW |
Belt (claimed) | 30 hp
22.4 kW |
Plows | 3 |
Drawbar (tested) | 26.85 hp
20.0 kW |
Belt (tested) | 44.68 hp
33.3 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 5940 lbs
2694 kg |
Rear tire | 60x10 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13 inches
33 cm |
Width | 7 inches
17 cm |
RPM | 1000 |
Speed | 3060 ft/min
932.69 meters/min |
Engine
Engine Detail — 382 ci / 6.3 L Gasoline
Manufacturer | Midwest |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 382 ci
6.3 L |
Bore/Stroke | 4.50x6.00 inches
114 x 152 mm |
Rated RPM | 1000 |
Huber 15-30 Super Four Engine | |
|---|---|
 |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Huber 15-30 Super Four Tires | |
|---|---|
Ag rear | 60x10 (steel) |
Dimensions | |
|---|---|
Length | 150 inches
381 cm |
Width | 82.5 inches
209 cm |
Height | 69 inches
175 cm |
Operating weight | 5940 lbs
2694 kg |
Tests
Nebraska Tractor Test 74 | |
|---|---|
Gasoline 2WD
April 11 - 20, 1921
Link: Nebraska Tractor Test 74 file | |
Belt power (max) | 44.68 hp
33.3 kW |
Drawbar performance | |
Max power | 26.85 hp
20.0 kW |
Max pull | 3645 lbs
1653 kg |
Photos

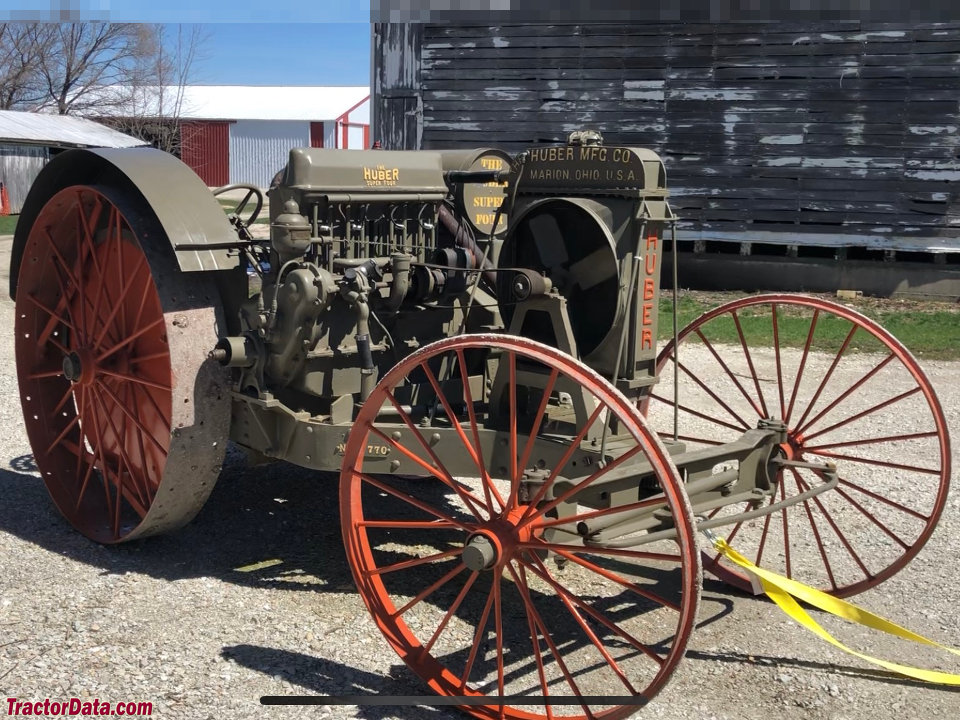

Huber 15-30 Super Four
Huber 15-30 Super Four
