Huber 20-36 Light Four

The Huber 20-36 Light Four is a tractor produced by Huber. It is equipped with a 443 ci 7.3 L engine. The rated power output is 42.26 hp 31.5 kW. Transmission: 2 forward and 1 reverse. Operating weight: 6575 lbs 2982 kg.

Overview

	1928 - 1935 Standard-tread tractor
1928 - 1935
Standard-tread tractor

Production
Manufacturer	Huber
Standard-tread tractor
Built in Marion, Ohio, USA

Huber 20-36 Light Four Engine
Waukesha 7.3L 4-cyl gasoline
Fuel tank	32 gal 121.1 L
Engine details ...

Huber 20-36 Light Four Transmission
2-speed gear
Transmission details ...

Huber 20-36 Light Four Power
Drawbar (claimed)	20 hp 14.9 kW
Belt (claimed)	36 hp 26.8 kW
Plows	4
Drawbar (tested)	29.18 hp 21.8 kW
Belt (tested)	42.26 hp 31.5 kW
Performance test details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	81.5 inches 207 cm
Weight	6575 lbs 2982 kg
Front tire	34x6
Rear tire	50x12
Full dimensions and tires ...

Belt Pulley
Diameter	17 inches 43 cm
Width	8.5 inches 21 cm
RPM	616

Engine

Engine Detail — 443 ci / 7.3 L Gasoline

Manufacturer	Waukesha
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	443 ci 7.3 L
Bore/Stroke	4.75x6.25 inches 121 x 159 mm
Air cleaner	oil bath

Transmission

Transmission — 2 forward and 1 reverse gear

Type	gear
Gears	2 forward and 1 reverse
Clutch	dry disc

Dimensions

Huber 20-36 Light Four Tires
Ag front	34x6 (steel)
Ag rear	50x12 (steel)

Dimensions
Wheelbase	81.5 inches 207 cm
Length	135 inches 342 cm
Width	73 inches 185 cm
Height (hood)	61 inches 154 cm
Operating weight	6575 lbs 2982 kg

Tests

Nebraska Tractor Test 168
Gasoline 2WD August 19 - 24, 1929 Link: Nebraska Tractor Test 168 file
Belt power (max)	42.26 hp 31.5 kW
Belt fuel use (max)	5.2 gal/hour 19.7 l/hour
Drawbar performance
Max power	29.18 hp 21.8 kW
Max pull	4482.5 lbs 2033 kg

Photos

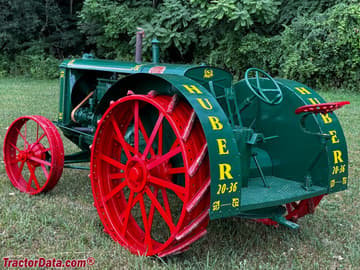

1929 Huber model 20-36 tractor.
