Hurlimann H-5110
The Hurlimann H-5110 is a tractor produced by Hurlimann. It is equipped with a 347.9 ci 5.7 L engine. The listed engine power is Diesel (listed): 112.7 hp / 84.0 kW. Transmission: 20 forward and 5 reverse. Operating weight: 9259 to 10472 pounds.
Engine Power
Diesel (listed): 112.7 hp / 84.0 kW
Fuel & Capacities
42.3 gal
160.1 L
Transmission
20 forward and 5 reverse
Operating Weight
9259 to 10472 pounds
Overview
 | 1980 - 1986 |
|---|
Production | |
|---|---|
Manufacturer | Hurlimann |
Hurlimann H-5110 Engine | |
|---|---|
SAME 5.7L 5-cyl diesel | |
Fuel tank | 42.3 gal
160.1 L |
Engine details ...  | |
Hurlimann H-5110 Power | |
|---|---|
Engine | 112.7 hp
84.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
Available deluxe cab with air-conditioning. | |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | Position control and lower-link draft sensing. |
Rear lift | 8818 lbs
3999 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 103.9 inches
263 cm |
Weight | 9259 to 10472 pounds |
Front tire | 9.00-16 |
2WD Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
H-5110 published in 1981, by Hurlimann |
Engine
Engine Detail — 347.9 ci / 5.7 L Diesel
Manufacturer | SAME |
Configuration | turbocharged diesel, 5-cylinder, liquid-cooled |
Displacement | 347.9 ci
5.7 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 112.7 hp
84.0 kW |
Compression | 16:1 |
Rated RPM | 2200 |
Torque | 323.8 lb-ft
439.1 Nm |
Torque RPM | 1350 |
Coolant capacity | 19 qts
18.0 L |
Transmission
Transmission options | |
|---|---|
12-speed synchronized | |
24-speed | |
20-speed creeper |

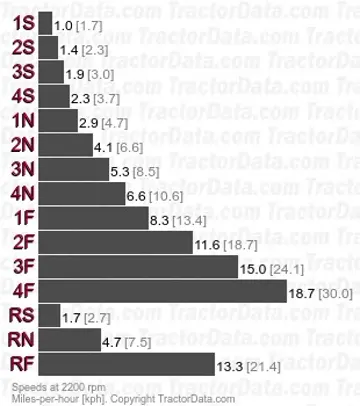

Transmission — 12 forward and 3 reverse synchronized
Type | synchronized |
Gears | 12 forward and 3 reverse |
Four gears, plus reverse, in three ranges. | |
 | |
Transmission — 24 forward and 6 reverse
Gears | 24 forward and 6 reverse |
Optional mini-reduction provides a shift between the standard gears and a 15% slower gear. | |
Transmission | |
Type | creeper |
Gears | 20 forward and 5 reverse |
 | |
Dimensions
Hurlimann H-5110 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 9.00-16. Rear: 16.9-38 |
4WD Standard tires (ag) | Front: 14.9-28. Rear: 16.9-38 |
2WD Optional tires (ag) | Front: 9.50-20. Rear: 18.4-38 |
4WD Optional tires (ag) | Front: 14.9-30. Rear: 18.4-38 |
4WD Optional tires (ag) | Front: 16.9-24. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 103.9 inches
263 cm |
Length | 174.4 inches
442 cm |
Width | 85.8 inches*Minimum width.
217 cm |
Height (cab) | 111.8 inches
283 cm |
2WD Weight | 9259 lbs
4199 kg |
4WD Weight | 10472 lbs
4750 kg |
Ground clearance | 18.5 inches
46 cm |
Front tread | 66.9 to 86.2 inches
169 to 218 cm |
Rear tread | 68.5 to 84.7 inches
173 to 215 cm |
Photos

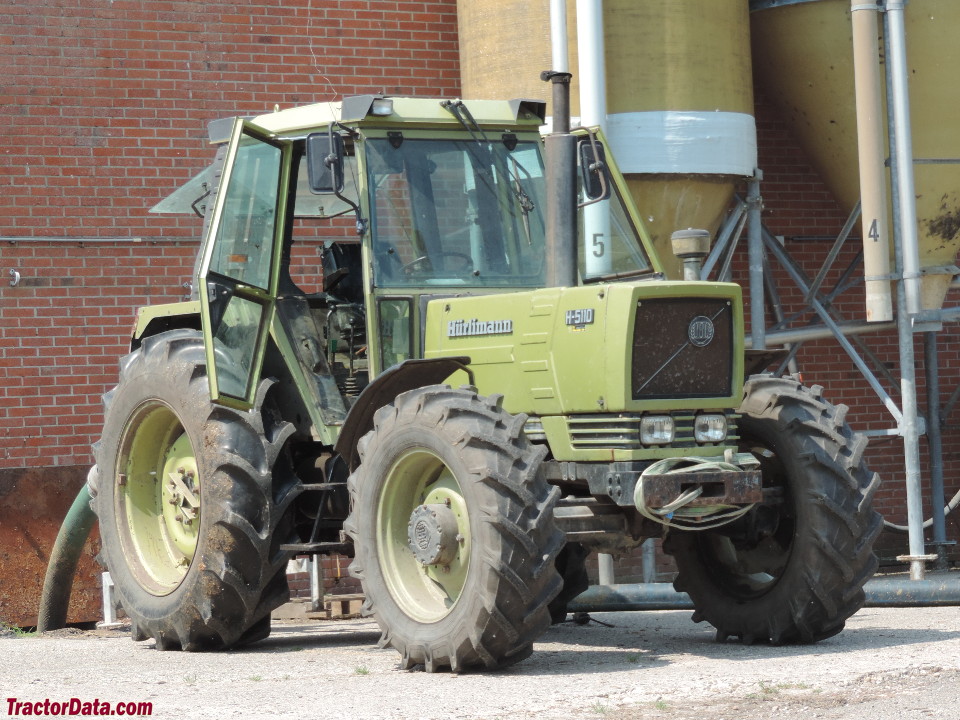

Hurlimann H-5110
Hurlimann H-5110
Hurlimann H-5110
Recommended Implements & Sizing Guide
Engineering recommendations for Hurlimann H-5110 based on its 112.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hurlimann H-5110.
Estimated Continuous Field Runtime: 7.2 hrs
Approximately 7.2 hours of continuous field operation at ~75% rated power on a full tank (42.3 gal / 160.1 L).
Estimated 75% Load Fuel Burn~5.9 gal/hr (22.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hurlimann H-5110 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hurlimann H-5110.
Converted Equivalents:
Horsepower (HP)112.7 hp
Kilowatts (kW)84 kW
Metric Horsepower (PS / CV)114.3 PS
