International Harvester 234

The International Harvester 234 is a tractor produced by International Harvester. It is equipped with a 51.8 ci 0.8 L engine. The rated power output is 18 hp 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 1205 lbs 546 kg.

Overview

	1982 - 1984 Compact Utility tractorMitsubishi built
1982 - 1984
Compact Utility tractor
Mitsubishi built

1982 - 1984
Compact Utility tractor
Mitsubishi built

Production
Distributor	International Harvester
Manufacturer	Mitsubishi
Compact Utility tractor
Built in Japan

International Harvester 234 Engine
Mitsubishi 0.8L 3-cyl diesel
Engine details ...

International Harvester 234 Power
Engine	18 hp 13.4 kW
PTO (claimed)	15.2 hp 11.3 kW

Mechanical
Two- or four-wheel drive
two-post ROPS; canopy optional

Capacity
Fuel	4.8 gal 18.2 L
Hydraulic system	3.1 gal 11.7 L

Hydraulics
Capacity	3.1 gal 11.7 L

Tractor hitch
Rear Type	1

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540
Front PTO	independent OptOptional
Front PTO Type	2700

Dimensions & Tires
Wheelbase	56 inches 142 cm
Weight	1205 lbs 546 kg
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Buyer's Guide 1982 published by International Harvester
200 Series Tractors published by International Harvester
New International Tractors published by International Harvester

Engine

	1982 - 1984 Compact Utility tractorMitsubishi built
1982 - 1984
Compact Utility tractor
Mitsubishi built

1982 - 1984
Compact Utility tractor
Mitsubishi built

Engine Detail — 51.8 ci / 0.8 L Diesel

Manufacturer	Mitsubishi
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	51.8 ci 0.8 L
Bore/Stroke	2.68x3.07 inches 68 x 78 mm
Power	18 hp 13.4 kW
Rated RPM	2700
Starter volts	12
Oil capacity	3.2 qts 3.0 L
Coolant capacity	5.2 qts 4.9 L

Transmission

	1982 - 1984 Compact Utility tractorMitsubishi built
1982 - 1984
Compact Utility tractor
Mitsubishi built

1982 - 1984
Compact Utility tractor
Mitsubishi built

Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse
Oil capacity	12.4 qts 11.7 L
Three gears plus reverse with high and low ranges.
With 8.00-18 rear tires.

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	1982 - 1984 Compact Utility tractorMitsubishi built
1982 - 1984
Compact Utility tractor
Mitsubishi built

1982 - 1984
Compact Utility tractor
Mitsubishi built

International Harvester 234 Tires

Dimensions
Wheelbase	56 inches 142 cm
Length	103.4 inches 262 cm
Width	36.9 inches 93 cm
2WD Height (steering wheel)	46.4 inches 117 cm
4WD Height (steering wheel)	46.6 inches 118 cm
2WD Shipping weight	1205 lbs 546 kg
2WD Ground clearance	11.2 inches 28 cm
4WD Ground clearance	8.5 inches 21 cm
Rear tread	29.1 to 35 inches 73 to 88 cm

Photos

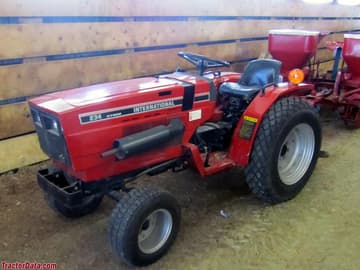

International Harvester 234

International Harvester 234 hydro operator station and controls.
