International Harvester 7588
The International Harvester 7588 is a tractor produced by International Harvester. It is equipped with a 798 ci 13.1 L engine. The rated power output is 300 hp 223.7 kW. Transmission: 18 forward and 4 reverse. Operating weight: 21,650 lbs 9820 kg.
Engine Power
300 hp
223.7 kW
Fuel & Capacities
194 gal
734.3 L
Transmission
18 forward and 4 reverse
Operating Weight
21,650 lbs
9820 kg
International Harvester 7588 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1984
70 SeriesFour-wheel Drive (4WD) tractorSteiger built |
|---|---|
1982 - 1984 | |
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built | |
1982 - 1984 | |
|---|---|
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built |
Production | |
|---|---|
Distributor | International Harvester |
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $84,300 in 1984 | |
International Harvester 7588 Engine | |
|---|---|
International Harvester 13.1L 8-cyl diesel | |
Fuel tank | 194 gal
734.3 L |
Engine details ...  | |
International Harvester 7588 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
International Harvester 7588 Power | |
|---|---|
Engine | 300 hp
223.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 19 |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 118 inches
299 cm |
Weight | 21,650 lbs
9820 kg |
Front tire | 24.5-32 |
Rear tire | 24.5-32 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
New International 4-Wheel Drive Tractors published in 1982, by International Harvester |
Engine
| 1982 - 1984
70 SeriesFour-wheel Drive (4WD) tractorSteiger built |
|---|---|
1982 - 1984 | |
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built | |
1982 - 1984 | |
|---|---|
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built |
Engine Detail — 798 ci / 13.1 L Diesel
Configuration | International Harvester DV-800, turbocharged diesel, 8-cylinder, liquid-cooled V8 |
Displacement | 798 ci
13.1 L |
Bore/Stroke | 5.31x4.50 inches
135 x 114 mm |
Power | 300 hp
223.7 kW |
Rated RPM | 2400 |
Torque | 725 lb-ft
983.1 Nm |
Torque RPM | 1800 |
Firing order | 1-8-7-3-6-5-4-2 |
Oil capacity | 30 qts
28.4 L |
Coolant capacity | 64 qts
60.6 L |
Intake valve clearance | 0.014 inches
0.356 mm |
Exhaust valve clearance | 0.016 inches
0.406 mm |
Transmission
| 1982 - 1984
70 SeriesFour-wheel Drive (4WD) tractorSteiger built |
|---|---|
1982 - 1984 | |
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built | |
1982 - 1984 | |
|---|---|
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built |

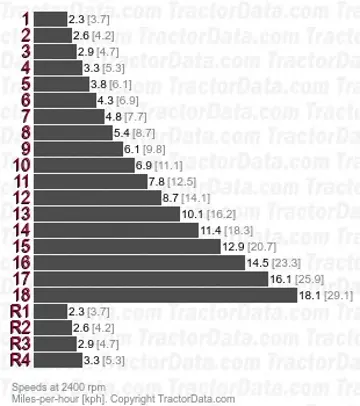

Transmission — 18 forward and 4 reverse
Gears | 18 forward and 4 reverse |
With 24.5-32 rear tires. | |
 | |
Dimensions
| 1982 - 1984
70 SeriesFour-wheel Drive (4WD) tractorSteiger built |
|---|---|
1982 - 1984 | |
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built | |
1982 - 1984 | |
|---|---|
70 Series | |
Four-wheel Drive (4WD) tractor | |
Steiger built |
International Harvester 7588 Tires | |
|---|---|
Ag front | 24.5-32 |
Ag rear | 24.5-32 |
Dimensions | |
|---|---|
Wheelbase | 118 inches
299 cm |
Length | 246 inches
624 cm |
Width | 116 inches
294 cm |
Weight | 21,650 lbs
9820 kg |
Ground clearance | 15.6 inches
39 cm |
International Harvester 7588 Height | |
|---|---|
94 inches (hood)
238 cm | |
134 inches (cab)
340 cm | |
147 inches (exhaust)
373 cm | |
