John Deere 7270R

The John Deere 7270R is a tractor produced by John Deere. It is equipped with a 549 ci 9.0 L engine. The rated power output is 259 hp 193.1 kW. Transmission: John Deere AutoPowr IVT. Operating weight: 23845 lbs 10816 kg.

Overview

	2014 - 7R SeriesRow-Crop tractor
2014 -
7R Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA

John Deere 7270R Engine
John Deere 9.0L 6-cyl diesel
Engine details ...

John Deere 7270R Power
Engine (gross)	270 hp 201.3 kW
Engine (net)	259 hp 193.1 kW
Engine (max)	311 hp 231.9 kW
PTO (claimed)	224 hp 167.0 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
	linked electro-hydraulic front on TLS Plus axle with brakes OptOptional
Steering	hydrostatic power
Hydraulic wet disc brakes
Cab standard with air-conditioning. AutoTrac ready

Capacity
E23 Fuel	143.7 gal 543.9 L
IVT Fuel	155.6 gal 588.9 L
E23 G49 tires Fuel	148.5 gal 562.1 L
IVT G49 tires Fuel	160.4 gal 607.1 L
Hydraulic system	42.3 gal 160.1 L

Hydraulics
Type	closed center pressure-flow compensated
Capacity	42.3 gal 160.1 L
Pressure	2958 psi 204.0 bar
Valves	3 to 6
Pump flow	42.8 gpm*Standard 63cc pump 162.0 lpm
	59 gpm*Optional 85cc pump 223.3 lpm
Rear SCV flow	34.9 gpm 132.1 lpm
Front SCV flow	33.3 gpm 126.0 lpm

Tractor hitch
Rear Type	III/IIIN
Control	electro-hydraulic draft sensing
Rear lift	15200 lbs 6894 kg
	17300 lbsOptOptional 7847 kg
Front Hitch	IIIN
Front lift	11464 lbs 5200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000 (1.75)
	540/1000 (1.375)
	540E/1000/1000E (1.375)
Engine RPM	540@1950
	540E@ 1750
	1000@ 1950
	1000E@ 1750
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)
	1000 (1.75)
Engine RPM	1000@1940

Dimensions & Tires
Wheelbase	115.2 inches 292 cm
Weight	23845 lbs 10816 kg
Front tire	540/65R34
Rear tire	650/85R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Batteries	2
Battery CCA	925
Battery volts	12
Battery Group	31

Engine

Engine Detail — 549 ci / 9.0 L Diesel

Manufacturer	John Deere PowerTech PVX
Configuration	variable geometry turbocharger diesel, 6-cylinder 24-valve, liquid-cooled inline
Displacement	549 ci 9.0 L
Bore/Stroke	4.66x5.35 inches 118 x 136 mm
Emissions	Stage IIIB
Emission control	cooled exhaust gas recirculation
Rated Power (net)	259 hp 193.1 kW
Rated Power (gross)	270 hp 201.3 kW
Maximum Power (net)	298.4 hp 222.5 kW
Maximum Power (gross)	311 hp 231.9 kW
Fuel system	electronic high-pressure common rail
Compression	16:1
Rated RPM	2100
Operating RPM	1550-2100
Torque	918.3 lb-ft 1245.2 Nm
Torque RPM	1600
Starter	electric
Starter volts	12
Coolant capacity	47 qts 44.5 L
Oil capacity	28.5 qts 27.0 L
Oil change	500 h

Transmission

Transmission options
23-speed full power shift
infinitely variable transmission

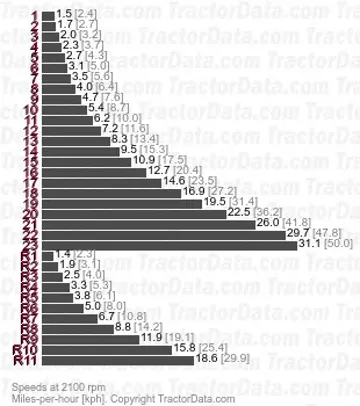

Transmission — John Deere e23

Transmission	John Deere e23
Type	full power shift
Gears	23 forward and 11 reverse
Oil capacity	169.1 qts 160.0 L
With Group 48 rear tires. Top speeds is achieved at reduced engine rpm. F23 at 1900rpm and R11 at 1865rpm.

Transmission — John Deere AutoPowr IVT

Transmission	John Deere AutoPowr IVT
Type	infinitely variable transmission
Gears	infinite forward and reverse
Oil capacity	169.1 qts 160.0 L

Dimensions

John Deere 7270R Tires
Ag front	540/65R34
Ag rear	650/85R38
Ag front	320/85R38
	380/85R34
	420/90R30
	480/70R30
	600/65R28
	320/80R42
	380/80R38
	420/85R34
	480/70R34
	600/70R30
	380/80R42
	420/85R38
	540/75R34
	600/65R34
	620/75R30
Ag rear	320/90R54
	380/90R50
	480/80R46
	520/85R42
	620/70R42
	650/65R42
	710/70R38
	320/105R54
	380/90R54
	480/80R50
	520/85R46
	620/70R46
	710/70R42
	800/70R38
	480/95R50
	710/75R42

Dimensions
Wheelbase	115.2 inches 292 cm
Length	218 inches 553 cm
Height (cab)	132 inches 335 cm
Weight	23845 lbs 10816 kg
Clearance (front axle)	19.5 inches 49 cm
Front axle	1300 MFWD
Front axle	Triple-Link Suspension MFWD
Flange rear axle
Bar rear axle	4.33 by 100.4 inches 109 by 2550 mm
Bar rear axle	4.33 by 118.5 inches 109 by 3009 mm
Bar rear axle	4.72 by 100.4 inches 119 by 2550 mm
Bar rear axle	4.72 by 118.5 inches 119 by 3009 mm
Front tread	60 to 88 inches 152 to 223 cm
