Iseki TA207

The Iseki TA207 is a tractor produced by Iseki. It is equipped with a 87.2 ci 1.4 L engine. The listed engine power is Diesel (listed): 19.7 hp / 14.7 kW. Transmission: 16 forward and reverse. Operating weight: 2189 to 2862 pounds.

Engine Power
Diesel (listed): 19.7 hp / 14.7 kW
Fuel & Capacities
5.6 gal 21.2 L
Transmission
16 forward and reverse
Operating Weight
2189 to 2862 pounds

Overview

Iseki TA207 tractor photo
1989 - 1992 Landleader TA7 SeriesCompact Utility tractor Landleader TA7 Series Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Variants
TA207F
4WD
Iseki TA207 Engine
Iseki 1.4L 3-cyl diesel
Fuel tank
5.6 gal 21.2 L
Engine details ...
Iseki TA207 Transmission
16-speed
Transmission details ...
Iseki TA207 Power
Engine
19.7 hp 14.7 kW
Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.
Power Take-off (PTO)
Rear PTO Type
540 (1.375)
Engine RPM
565@2500
733@2500
1060@2500
1244@2500
Dimensions & Tires
Wheelbase
60.6 inches 153 cm
Weight
2189 to 2862 pounds
Front tire
4.00-15
2WD Rear tire
8.3-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TA207 references literature
Land Leader 7 Series published in 1993, by Iseki

Engine

Engine Detail — 87.2 ci / 1.4 L Diesel

Manufacturer
Iseki E3AG1
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
87.2 ci 1.4 L
Bore/Stroke
3.307x3.385 inches 84 x 86 mm
Power
19.7 hp 14.7 kW
Rated RPM
2500
Starter
electric
Starter volts
12
Oil capacity
5.1 qts 4.8 L
Iseki TA207 Engine
Iseki TA207 engine image

Transmission

Transmission — 16 forward and reverse

Gears
16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

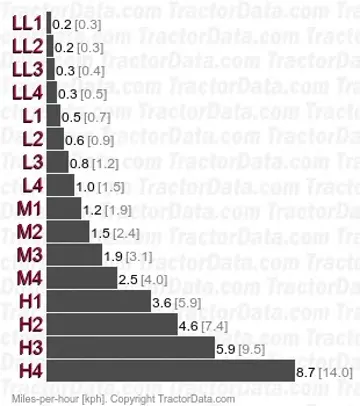

TA207   speeds

Dimensions

Iseki TA207 Tires
2WD Standard tires (ag)
Front: 4.00-15. Rear: 8.3-24
4WD Standard tires (ag)
Front: 6-14. Rear: 8.3-24
Dimensions
Wheelbase
60.6 inches 153 cm
Length
114.4 inches 290 cm
Width
49.2 inches 124 cm
Height (steering wheel)
54.9 inches 139 cm
Height (cab)
76.6 inches 194 cm
Ground clearance
10.4 inches 26 cm
2WD Front tread
35.8/39.8 inches 90/101 cm
4WD Front tread
37.4 inches 94 cm
Rear tread
37/42.9 inches 93/108 cm
Iseki TA207 Weight
2WD Open
2189 lbs 992 kg
4WD Open
2377 lbs 1078 kg
2WD Cab
2674 lbs 1212 kg
4WD Cab
2862 lbs 1298 kg

Photos

Iseki TA207 tractor photo

Iseki TA207 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TA207 based on its 19.7 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TA207.

Estimated Continuous Field Runtime: 5.5 hrs

Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (5.6 gal / 21.2 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TA207 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA207.

Converted Equivalents:

Horsepower (HP)19.7 hp
Kilowatts (kW)14.7 kW
Metric Horsepower (PS / CV)20 PS
