Iseki TA263

The Iseki TA263 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2260 to 2954 pounds.

Overview

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA263F	4WD

Iseki TA263 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	5.6 gal 21.2 L
Engine details ...

Iseki TA263 Transmission
16-speed
Transmission details ...

Iseki TA263 Power
Engine	25.6 hp 19.1 kW

Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	565@2500
	733@2500
	1060@2500
	1244@2500

Dimensions & Tires
Wheelbase	60.6 inches 153 cm
Weight	2260 to 2954 pounds
Front tire	4.00-15
2WD Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Land Leader 7 Series published in 1993, by Iseki

Engine

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Engine Detail
Iseki E3ADI
diesel
3-cylinder
liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.43x3.31 inches 87 x 84 mm
Power	25.6 hp 19.1 kW
Rated RPM	2500
Starter	electric
Starter volts	12
Oil capacity	5.1 qts 4.8 L

Iseki TA263 Engine

Transmission

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Transmission
Gears	16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

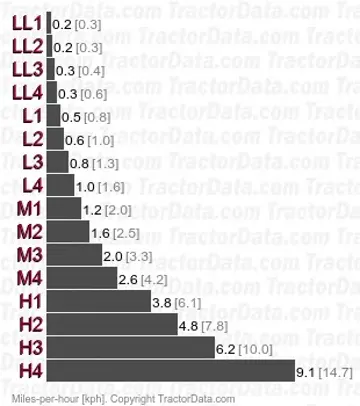

Speeds

Dimensions

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Iseki TA263 Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-24
4WD Standard tires (ag)	Front: 7-14. Rear: 9.5-24

Dimensions
Wheelbase	60.6 inches 153 cm
Length	114.4 inches 290 cm
Width	49.2 inches 124 cm
Height (steering wheel)	55.7 inches 141 cm
Height (cab)	77.2 inches 196 cm
Ground clearance	11.6 inches 29 cm
2WD Front tread	37.8/41.7 inches 96/105 cm
4WD Front tread	42.1 inches 106 cm
Rear tread	38.6/44.5 inches 98/113 cm

Iseki TA263 Weight
2WD Open	2260 lbs 1025 kg
4WD Open	2469 lbs 1119 kg
2WD Cab	2745 lbs 1245 kg
4WD Cab	2954 lbs 1339 kg

Photos

Iseki TA263 tractor photo
