Iseki TU2101

The Iseki TU2101 is a tractor produced by Iseki. It is equipped with a 71.4 ci 1.2 L engine. The rated power output is 20.7 hp 15.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1565 to 1598 pounds.

Overview

	1984 - ???? TU-01 SeriesCompact Utility tractor
1984 - ????
TU-01 Series
Compact Utility tractor

1984 - ????
TU-01 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU2101F	4WD

Iseki TU2101 Engine
Isuzu 1.2L 3-cyl diesel
Fuel tank	6.1 gal 23.1 L
Engine details ...

Iseki TU2101 Transmission
12-speed
Transmission details ...

Iseki TU2101 Power
Engine	20.7 hp 15.4 kW

Mechanical
Two- or four-wheel drive

Tractor hitch
Rear Type	JIS0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	528@2300
	814@2300
	1288@2300

Dimensions & Tires
Wheelbase	53.2 inches 135 cm
Weight	1565 to 1598 pounds
Front tire	4.00-12
2WD Rear tire	9.5-22
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Gold Series published in 1984, by Iseki
TU 1701 1901 2101

Engine

	1984 - ???? TU-01 SeriesCompact Utility tractor
1984 - ????
TU-01 Series
Compact Utility tractor

1984 - ????
TU-01 Series
Compact Utility tractor

Engine Detail
Isuzu 3AF1
diesel
3-cylinder
liquid-cooled
Displacement	71.4 ci 1.2 L
Bore/Stroke	2.992x3.386 inches 76 x 86 mm
Power	20.7 hp 15.4 kW
Rated RPM	2300
Starter	electric
Starter volts	12
Coolant capacity	23.3 qts 22.1 L

Engine Oil
Oil capacity	3.2 qts 3.0 L

Transmission

	1984 - ???? TU-01 SeriesCompact Utility tractor
1984 - ????
TU-01 Series
Compact Utility tractor

1984 - ????
TU-01 Series
Compact Utility tractor

Transmission
Gears	12 forward and 4 reverse
Oil capacity	18 qts 17.0 L

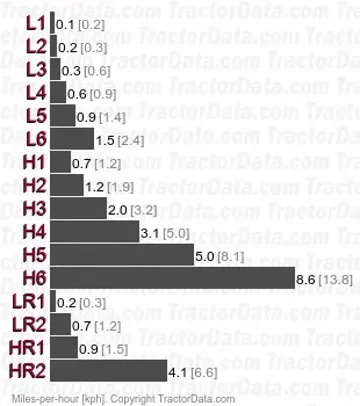

Speeds

Dimensions

	1984 - ???? TU-01 SeriesCompact Utility tractor
1984 - ????
TU-01 Series
Compact Utility tractor

1984 - ????
TU-01 Series
Compact Utility tractor

Iseki TU2101 Tires
2WD Standard tires (ag)	Front: 4.00-12. Rear: 9.5-22
4WD Standard tires (ag)	Front: 6.00-12. Rear: 9.5-22

Dimensions
Wheelbase	53.2 inches 135 cm
Length	102.8 inches 261 cm
Width	53.2 inches 135 cm
Height (exhaust)	76 inches 193 cm
2WD Weight	1565 lbs 709 kg
4WD Weight	1598 lbs 724 kg
2WD Ground clearance	13.8 inches 35 cm
4WD Ground clearance	11.8 inches 29 cm
2WD Front tread	33.5/37.8 inches 85/96 cm
4WD Front tread	37.4 inches 94 cm
Rear tread	34.7 to 40.9 inches 88 to 103 cm

Photos

Iseki TU2101 tractor photo
