Iseki TA267

The Iseki TA267 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2348 to 3031 pounds.

Overview

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA267F	4WD

Iseki TA267 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Iseki TA267 Transmission
16-speed
Transmission details ...

Iseki TA267 Power
Engine	25.6 hp 19.1 kW

Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	565@2500
	733@2500
	1060@2500
	1244@2500

Dimensions & Tires
Wheelbase	63.6 inches 161 cm
Weight	2348 to 3031 pounds
Front tire	5.00-15
2WD Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Land Leader 7 Series published in 1993, by Iseki

Engine

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Engine Detail
Iseki E3ADI
diesel
3-cylinder
liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.43x3.31 inches 87 x 84 mm
Power	25.6 hp 19.1 kW
Rated RPM	2500
Starter	electric
Starter volts	12
Oil capacity	5.1 qts 4.8 L

Iseki TA267 Engine

Transmission

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Transmission
Gears	16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

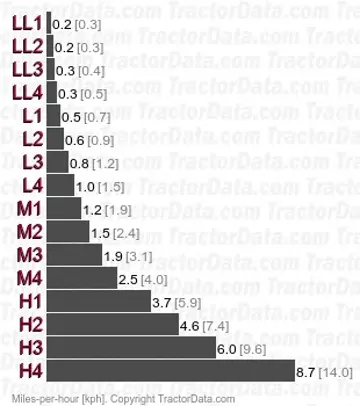

Speeds

Dimensions

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Iseki TA267 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 11.2-24
4WD Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	63.6 inches 161 cm
Length	117.3 inches 297 cm
Width	52 inches 132 cm
Height (steering wheel)	56.7 inches 144 cm
Height (cab)	78 inches 198 cm
Ground clearance	13 inches 33 cm
2WD Front tread	38.6 to 50.4 inches 98 to 128 cm
4WD Front tread	42.1 inches 106 cm
Rear tread	40.2 to 48 inches 102 to 121 cm

Iseki TA267 Weight
2WD Open	2348 lbs 1065 kg
4WD Open	2546 lbs 1154 kg
2WD Cab	2833 lbs 1285 kg
4WD Cab	3031 lbs 1374 kg

Photos

Iseki TA267 tractor photo
