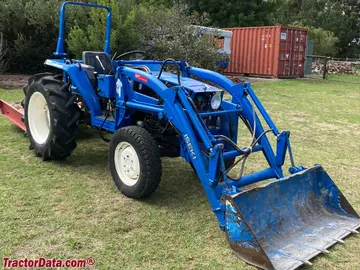

Iseki TA287

The Iseki TA287 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 16 forward and reverse. Operating weight: 2414 to 3064 pounds.

Overview

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA287F	4WD

Iseki TA287 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Iseki TA287 Transmission
16-speed
Transmission details ...

Iseki TA287 Power
Engine	27.6 hp 20.6 kW

Mechanical
Two- or four-wheel drive
Open operator station. Cab optional.

Photos
Iseki TA287 photos...

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	565@2800
	732@2800
	1053@2800
	1233@2800

Dimensions & Tires
Wheelbase	66.9 inches 169 cm
Weight	2414 to 3064 pounds
Front tire	5.00-15
2WD Rear tire	12.4-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Land Leader 7 Series published in 1993, by Iseki

Engine

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Engine Detail
Iseki E3ADI
diesel
3-cylinder
liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.43x3.31 inches 87 x 84 mm
Power	27.6 hp 20.6 kW
Rated RPM	2800
Starter	electric
Starter volts	12
Oil capacity	5.1 qts 4.8 L

Iseki TA287 Engine

Transmission

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Transmission
Gears	16 forward and reverse
Four gears (1-4) in four ranges with shuttle shift.

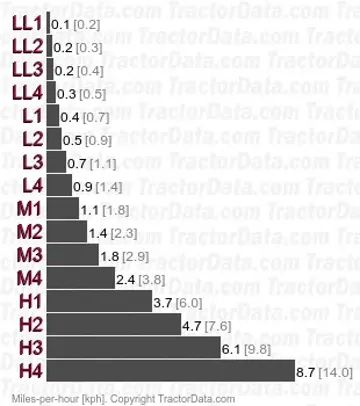

Speeds

Dimensions

	1989 - 1992 Landleader TA7 SeriesCompact Utility tractor
1989 - 1992
Landleader TA7 Series
Compact Utility tractor

1989 - 1992
Landleader TA7 Series
Compact Utility tractor

Iseki TA287 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 12.4-24
4WD Standard tires (ag)	Front: 7-16. Rear: 12.4-24

Dimensions
Wheelbase	66.9 inches 169 cm
Length	120.9 inches 307 cm
Width	53.4 inches 135 cm
Height (steering wheel)	57.3 inches 145 cm
Height (cab)	78.5 inches 199 cm
Ground clearance	13.6 inches 34 cm
2WD Front tread	38.6 to 50.4 inches 98 to 128 cm
4WD Front tread	42.1 inches 106 cm
Rear tread	40.2 to 52.8 inches 102 to 134 cm

Iseki TA287 Weight
2WD Open	2414 lbs 1094 kg
4WD Open	2579 lbs 1169 kg
2WD Cab	2899 lbs 1314 kg
4WD Cab	3064 lbs 1389 kg

Photos

Iseki TA287
