Iseki TA320
The Iseki TA320 is a tractor produced by Iseki. It is equipped with a 91.5 ci 1.5 L engine. The rated power output is 32 hp 23.9 kW. Transmission: 16 forward and reverse. Operating weight: 3109 to 3384 pounds.
Engine Power
32 hp
23.9 kW
Fuel & Capacities
12.7 gal
48.1 L
Transmission
16 forward and reverse
Operating Weight
3109 to 3384 pounds
Iseki TA320 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1987
Landleader TA0 SeriesCompact Utility tractor |
|---|---|
1985 - 1987 | |
Landleader TA0 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TA320F | 4WD |
Iseki TA320 Engine | |
|---|---|
Isuzu 1.5L 4-cyl diesel | |
Fuel tank | 12.7 gal
48.1 L |
Engine details ...  | |
Iseki TA320 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Iseki TA320 Power | |
|---|---|
Engine | 32 hp
23.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 564@2800 |
705@2800 | |
837@2800 | |
1308@2800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 73 inches
185 cm |
Weight | 3109 to 3384 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 13.6-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Landleader published in 1987, by Iseki | |
Operator's Manual Landleader 290 - 320 (1564-912-001-3) |
Engine
Engine Detail — 91.5 ci / 1.5 L Diesel
Manufacturer | Isuzu 4FE1 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 91.5 ci
1.5 L |
Power | 32 hp
23.9 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |

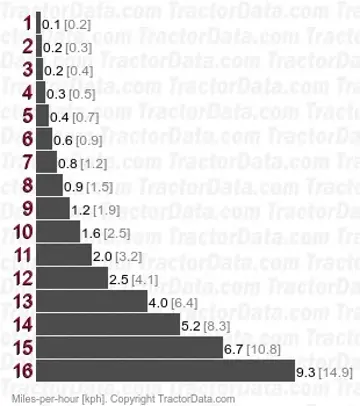

Transmission
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
 | |
Dimensions
Iseki TA320 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-16. Rear: 13.6-26 |
4WD Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 73 inches
185 cm |
Length | 128.7 inches
326 cm |
Width | 60 inches
152 cm |
Height (exhaust) | 75.6 inches
192 cm |
2WD Weight | 3109 lbs
1410 kg |
4WD Weight | 3384 lbs
1534 kg |
Ground clearance | 14.2 inches
36 cm |
2WD Front tread | 45.3/49.2/53.2/57.1/61 inches
115/124/135/145/154 cm |
4WD Front tread | 47.6 inches
120 cm |
Rear tread | 44.9/46.5/49.6/51.2/54.3/59.1 inches
114/118/125/130/137/150 cm |
Photos

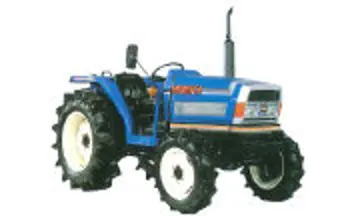

Iseki TA320 tractor photo
Iseki TA320 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA320.
Converted Equivalents:
Horsepower (HP)32 hp
Kilowatts (kW)23.9 kW
Metric Horsepower (PS / CV)32.4 PS
