Iseki TH26
The Iseki TH26 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 12 forward and reverse. Operating weight: 1940 to 2392 pounds.
Overview
 | 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
2004 - 2010 | |
|---|---|
TH Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TH26 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
Iseki TH26 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Iseki TH26 Power | |
|---|---|
Engine | 25.6 hp
19.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 523@2500 |
829@2500 | |
1218@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
Weight | 1940 to 2392 pounds |
Front tire | 7-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual TH Series (1716-912-003-5G) published in 2004 | |
TH Series - Sial Hunter published in 2006, by Iseki |
Engine
| 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
2004 - 2010 | |
|---|---|
TH Series | |
Compact Utility tractor |
Engine Detail | |
|---|---|
Iseki E3CD | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 91.4 ci
1.5 L |
Bore/Stroke | 3.43x3.31 inches
87 x 84 mm |
Power | 25.6 hp
19.1 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
| 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
2004 - 2010 | |
|---|---|
TH Series | |
Compact Utility tractor |
Transmission | |
|---|---|
Type | gear |
Gears | 12 forward and reverse |
Clutch | dry disc |
Four gears in three ranges with mechanical shuttle. | |
Speeds | |
|---|---|
 |

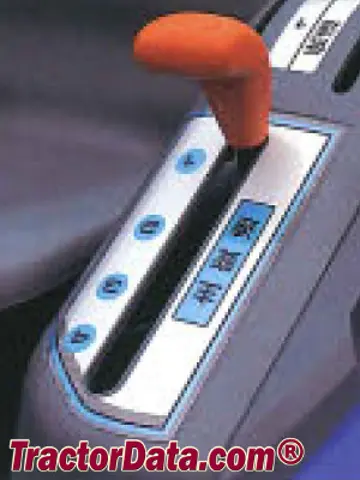

Shift Pattern | |
|---|---|
 |
Dimensions
| 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
2004 - 2010 | |
|---|---|
TH Series | |
Compact Utility tractor |
Iseki TH26 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
ROPS Length | 105.9 inches
268 cm |
Cab Length | 108.3 inches
275 cm |
ROPS Width | 46.5 inches
118 cm |
Cab Width | 49 inches
124 cm |
Height (ROPS) | 75.6 inches
192 cm |
ROPS Weight | 1940 lbs
879 kg |
Cab Weight | 2392 lbs
1085 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 37.8 inches
96 cm |
Rear tread | 34.7/40.8 inches
88/103 cm |
Photos
Iseki TH26 tractor photo
