Iseki TA437
The Iseki TA437 is a tractor produced by Iseki. It is equipped with a 91.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 42.4 hp / 31.6 kW. Transmission: 16 forward and reverse. Operating weight: 3428 lbs 1554 kg.
Engine Power
Diesel (listed): 42.4 hp / 31.6 kW
Fuel & Capacities
11.1 gal
42.0 L
Transmission
16 forward and reverse
Operating Weight
3428 lbs
1554 kg
Overview
![]() | 1989 - 1992
Landleader TA7 SeriesCompact Utility tractor
Landleader TA7 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TA437 Engine | |
|---|---|
Isuzu 1.5L 4-cyl diesel | |
Fuel tank | 11.1 gal
42.0 L |
Engine details ... | |
Iseki TA437 Transmission | |
|---|---|
16-speed | |
Transmission details ... |
Iseki TA437 Power | |
|---|---|
Engine | 42.4 hp
31.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Open operator station. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 564@2800 |
705@2800 | |
1040@2800 | |
1308@2800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 73.6 inches
186 cm |
Weight | 3428 lbs
1554 kg |
Front tire | 8-18 |
Rear tire | 13.6-26 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Land Leader 7 Series published in 1993, by Iseki* | |
*Publication contains known errors. |

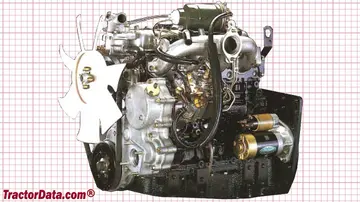

Engine
Engine Detail — 91.3 ci / 1.5 L Diesel
Manufacturer | Isuzu 4JF1PTB |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 91.3 ci
1.5 L |
Bore/Stroke | 2.96x3.31 inches
75 x 84 mm |
Power | 42.4 hp
31.6 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Iseki TA437 Engine | |
|---|---|
![]() |
Transmission
Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Dimensions
Iseki TA437 Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 13.6-26 |
Dimensions | |
|---|---|
Wheelbase | 73.6 inches
186 cm |
Length | 128 inches
325 cm |
Width | 60 inches
152 cm |
Height | 75.6 inches
192 cm |
Weight | 3428 lbs
1554 kg |
Ground clearance | 14.2 inches
36 cm |
Front tread | 47.6 inches
120 cm |
Rear tread | 44.9 to 59.1 inches
114 to 150 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TA437 based on its 42.4 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TA437.
Estimated Continuous Field Runtime: 5 hrs
Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (11.1 gal / 42 L).
Estimated 75% Load Fuel Burn~2.2 gal/hr (8.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TA437 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA437.
Converted Equivalents:
Horsepower (HP)42.4 hp
Kilowatts (kW)31.6 kW
Metric Horsepower (PS / CV)43 PS
Direct Competitor Comparison
Compare Iseki TA437 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TA437
Engine Power:Diesel (listed): 42.4 hp / 31.6 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 240
Engine Power:38.5
Production Years:1958 - 1962
