Iseki TF321

The Iseki TF321 is a tractor produced by Iseki. It is equipped with a 68.5 ci 1.1 L engine. The rated power output is 19.7 hp 14.7 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1587 to 1620 pounds.

Engine Power
19.7 hp 14.7 kW
Fuel & Capacities
4.8 gal 18.2 L
Transmission
9 forward and 3 reverse
Operating Weight
1587 to 1620 pounds

Iseki TF321 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

No photo available
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TF321 Engine
Iseki 1.1L 3-cyl diesel
Fuel tank
4.8 gal 18.2 L
Engine details ...
Iseki TF321 Power
Engine
19.7 hp 14.7 kW
Mechanical
Four-wheel drive
Steering
power assist
Differential mechanical wet disc brakes
Tractor hitch
Rear Type
I
Rear lift (at ends)
1,213 lbs 550 kg
Power Take-off (PTO)
Rear PTO
live (two-stage clutch)
independent on hydrostatic
Rear PTO Type
540/1000
Mid PTO Type
2000
Dimensions & Tires
Wheelbase
59.5 inches 151 cm
Weight
1587 to 1620 pounds
Front tire
6-12
Rear tire
9.5-16
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
45

Engine

No photo available
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor

Engine Detail — 68.5 ci / 1.1 L Diesel

Manufacturer
Iseki E3112
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
68.5 ci 1.1 L
Bore/Stroke
3.08x3.07 inches 78 x 78 mm
Power
19.7 hp 14.7 kW
Air cleaner
dry element
Rated RPM
2500
Starter type
electric
Oil capacity
3.3 qts 3.1 L
Coolant capacity
5.4 qts 5.1 L

Transmission

No photo available
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor
Transmission options
6-speed unsynchronized
hydrostatic
9-speed unsynchronized

Transmission — 6 forward and 2 reverse unsynchronized

Type
unsynchronized
Gears
6 forward and 2 reverse
Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range.
TF321 unsynchronized speeds

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)
TF321 hydrostatic speeds

Transmission — 9 forward and 3 reverse unsynchronized

Type
unsynchronized
Gears
9 forward and 3 reverse
Gear transmission with optional creeper range.

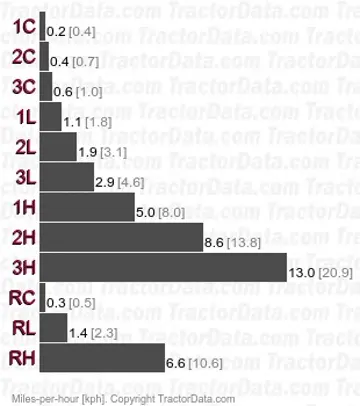

TF321 unsynchronized speeds

Dimensions

No photo available
2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor
2001 - ????
Compact Utility tractor
Iseki TF321 Tires
Ag front
6-12
Ag rear
9.5-16
Lawn/turf front
24x8.50-12
Lawn/turf rear
315/75D-15
Dimensions
Wheelbase
59.5 inches 151 cm
Length
108.3 inches 275 cm
Width
44.3 inches 112 cm
Height (steering wheel)
52 inches 132 cm
Height (ROPS)
89.4 inches 227 cm
Ground clearance
6.3 inches 16 cm
Iseki TF321 Weight
Shipping
1,587 lbs (gear) 719 kg
1,620 lbs (hydro) 734 kg
Max capacity
3,582 lbs 1624 kg
Max front axle
1,653 lbs 749 kg
Max rear axle
1,929 lbs 874 kg

Iseki TF321 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TF321.

Converted Equivalents:

Horsepower (HP)19.7 hp
Kilowatts (kW)14.7 kW
Metric Horsepower (PS / CV)20 PS
