Iseki TF325

The Iseki TF325 is a tractor produced by Iseki. It is equipped with a 87.2 ci 1.4 L engine. The rated power output is 24.2 hp 18.0 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1874 to 1940 pounds.

Overview

	2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor

2001 - ????
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Iseki TF325 Engine
Iseki 1.4L 3-cyl diesel
Fuel tank	6.1 gal 23.1 L
Engine details ...

Iseki TF325 Power
Engine	24.2 hp 18.0 kW

Mechanical
Four-wheel drive
Steering	power assist
Differential mechanical wet disc brakes

Tractor hitch
Rear Type	I
Rear lift (at ends)	1,984 lbs 899 kg

Power Take-off (PTO)
Rear PTO	live (two-stage clutch)
	independent on hydrostatic
Rear PTO Type	540/1000
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	64.6 inches 164 cm
Weight	1874 to 1940 pounds
Front tire	6-14
Rear tire	12.4-16
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	55

Engine

	2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor

2001 - ????
Compact Utility tractor

Engine Detail — 87.2 ci / 1.4 L Diesel

Manufacturer	Iseki E3CE
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	87.2 ci 1.4 L
Bore/Stroke	3.35x3.31 inches 85 x 84 mm
Power	24.2 hp 18.0 kW
Air cleaner	dry element
Rated RPM	2500
Starter type	electric
Oil capacity	4.3 qts 4.1 L
Coolant capacity	7.5 qts 7.1 L

Transmission

	2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor

2001 - ????
Compact Utility tractor

Transmission options
9-speed unsynchronized
hydrostatic
12-speed unsynchronized

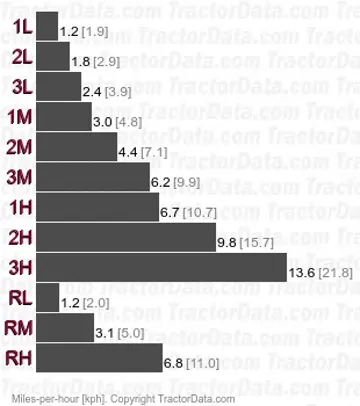

Transmission — 9 forward and 3 reverse unsynchronized

Type	unsynchronized
Gears	9 forward and 3 reverse
Three forward and one reverse gear with high, medium, and low ranges. Tractor must be stopped and clutch used to shift gears or range.

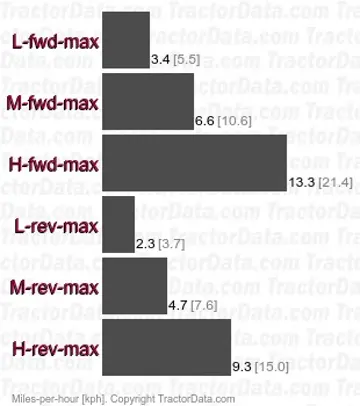

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

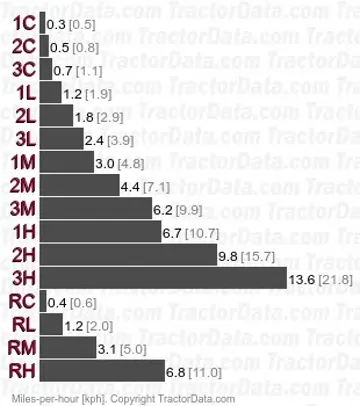

Transmission — 12 forward and 4 reverse unsynchronized

Type	unsynchronized
Gears	12 forward and 4 reverse
Gear transmission with optional creeper range.

Dimensions

	2001 - ???? Compact Utility tractor
2001 - ????
Compact Utility tractor

2001 - ????
Compact Utility tractor

Iseki TF325 Tires
Ag front	6-14
Ag rear	12.4-16
Lawn/turf front	24x8.50-12
Lawn/turf rear	315x80D-16

Dimensions
Wheelbase	64.6 inches 164 cm
Length	116.5 inches 295 cm
Width	55.6 inches 141 cm
Height (steering wheel)	54 inches 137 cm
Height (ROPS)	91.1 inches 231 cm
Ground clearance	6.3 inches 16 cm

Iseki TF325 Weight
Shipping	1,874 lbs (gear) 850 kg
	1,940 lbs (hydro) 879 kg
Max capacity	4,002 lbs 1815 kg
Max front axle	1,797 lbs 815 kg
Max rear axle	2,205 lbs 1000 kg
