Iseki TH20
The Iseki TH20 is a tractor produced by Iseki. It is equipped with a 83.2 ci 1.4 L engine. The listed engine power is Diesel (listed): 19.7 hp / 14.7 kW. Transmission: 12 forward and reverse. Operating weight: 1786 lbs 810 kg.
Engine Power
Diesel (listed): 19.7 hp / 14.7 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
12 forward and reverse
Operating Weight
1786 lbs
810 kg
Overview
![]() | 2004 - 2010
TH SeriesCompact Utility tractor
TH Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TH20 Engine | |
|---|---|
Iseki 1.4L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ... | |
Iseki TH20 Transmission | |
|---|---|
12-speed gear | |
Transmission details ... |
Iseki TH20 Power | |
|---|---|
Engine | 19.7 hp
14.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 523@2500 |
783@2500 | |
1184@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
Weight | 1786 lbs
810 kg |
Front tire | 6.00-12 |
Rear tire | 8.3-22 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Operator's Manual TH Series (1716-912-003-5G) published in 2004 | |
TH Series - Sial Hunter published in 2006, by Iseki |
Engine
Engine Detail — 83.2 ci / 1.4 L Diesel
Manufacturer | Iseki E3CC |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 83.2 ci
1.4 L |
Power | 19.7 hp
14.7 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse gear
Type | gear |
Gears | 12 forward and reverse |
Clutch | dry disc |

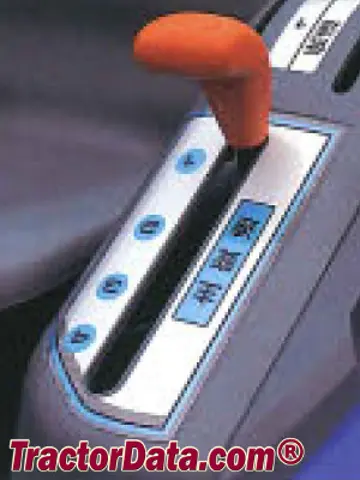

Four gears in three ranges with mechanical shuttle. | |
![]() | |
Dimensions
Iseki TH20 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-12. Rear: 8.3-22 |
Dimensions | |
|---|---|
Wheelbase | 57.1 inches
145 cm |
Length | 105.9 inches
268 cm |
Width | 43.7 inches
110 cm |
Height (ROPS) | 73.4 inches
186 cm |
Weight | 1786 lbs
810 kg |
Ground clearance | 13.2 inches
33 cm |
Front tread | 34.7 inches
88 cm |
Rear tread | 33.5/39.6 inches
85/100 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TH20 based on its 19.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TH20.
Estimated Continuous Field Runtime: 6.4 hrs
Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).
Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TH20 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TH20.
Converted Equivalents:
Horsepower (HP)19.7 hp
Kilowatts (kW)14.7 kW
Metric Horsepower (PS / CV)20 PS
Direct Competitor Comparison
Compare Iseki TH20 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TH20
Engine Power:Diesel (listed): 19.7 hp / 14.7 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 8-16
Engine Power:17.8
Production Years:1917 - 1922
