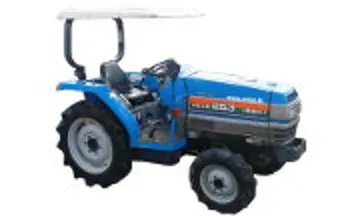

Iseki TG253
The Iseki TG253 is a tractor produced by Iseki. It is equipped with a 89.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 24.7 hp / 18.4 kW. Transmission: 16 forward and reverse. Operating weight: 2712 to 3064 pounds.
Engine Power
Diesel (listed): 24.7 hp / 18.4 kW
Fuel & Capacities
9.25 gal
35.0 L
Transmission
16 forward and reverse
Operating Weight
2712 to 3064 pounds
Overview
![]() | ???? - 2004
TG SeriesCompact Utility tractor |
|---|---|
???? - 2004 | |
TG Series | |
Compact Utility tractor | |
???? - 2004 | |
|---|---|
TG Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TG253 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Fuel tank | 9.25 gal
35.0 L |
Engine details ... | |
Iseki TG253 Transmission | |
|---|---|
16-speed | |
Transmission details ... |
Iseki TG253 Power | |
|---|---|
Engine | 24.7 hp
18.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post ROPS. Cab optional. |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 577/767/1052/1243 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 62.6 inches
159 cm |
Weight | 2712 to 3064 pounds |
Front tire | 7-14 |
Rear tire | 9.5-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |

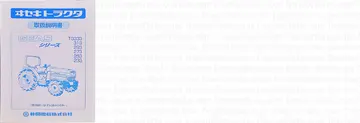

GEAS TG Operator Manual (1690-912-001-0A) |
Engine
![]() | ???? - 2004
TG SeriesCompact Utility tractor |
|---|---|
???? - 2004 | |
TG Series | |
Compact Utility tractor | |
???? - 2004 | |
|---|---|
TG Series | |
Compact Utility tractor |
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Iseki E3CF |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Power | 24.7 hp
18.4 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
![]() | ???? - 2004
TG SeriesCompact Utility tractor |
|---|---|
???? - 2004 | |
TG Series | |
Compact Utility tractor | |
???? - 2004 | |
|---|---|
TG Series | |
Compact Utility tractor |

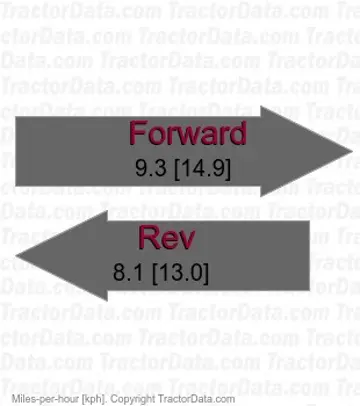

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Clutch | dry disc |
![]() | |
Dimensions
![]() | ???? - 2004
TG SeriesCompact Utility tractor |
|---|---|
???? - 2004 | |
TG Series | |
Compact Utility tractor | |
???? - 2004 | |
|---|---|
TG Series | |
Compact Utility tractor |
Iseki TG253 Tires | |
|---|---|
Standard tires (ag) | Front: 7-14. Rear: 9.5-24 |
Dimensions | |
|---|---|
Wheelbase | 62.6 inches
159 cm |
Length | 116.9 inches
296 cm |
ROPS Width | 52.4 inches
133 cm |
Cab Width | 55.5 inches
140 cm |
Height | 77.6 inches
197 cm |
ROPS Weight | 2712 lbs
1230 kg |
Cab Weight | 3064 lbs
1389 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 42.9 inches
108 cm |
Rear tread | 39.8 to 46.1 inches
101 to 117 cm |

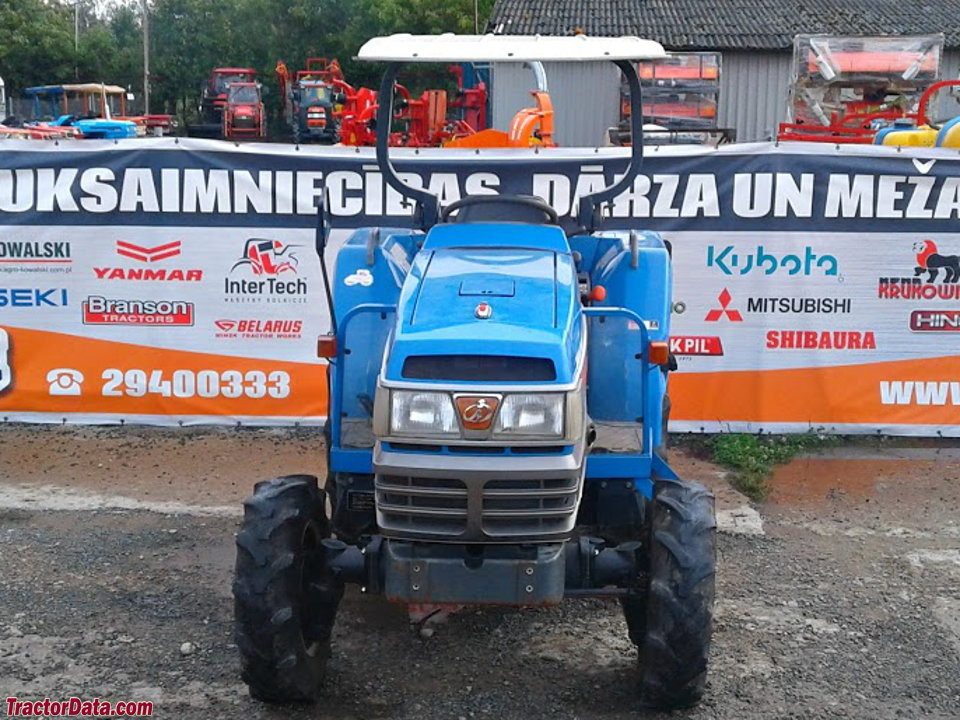

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TG253 based on its 24.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TG253.
Estimated Continuous Field Runtime: 7.2 hrs
Approximately 7.2 hours of continuous field operation at ~75% rated power on a full tank (9.3 gal / 35 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (4.9 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TG253 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TG253.
Converted Equivalents:
Horsepower (HP)24.7 hp
Kilowatts (kW)18.4 kW
Metric Horsepower (PS / CV)25 PS
Direct Competitor Comparison
Compare Iseki TG253 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TG253
Engine Power:Diesel (listed): 24.7 hp / 18.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester Farmall
Engine Power:22.3
Production Years:1924 - 1932
